Tektronix TLA7N4 module, 136 channel, 2 ghz - 100 mhz

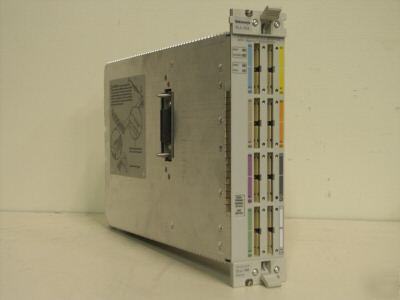

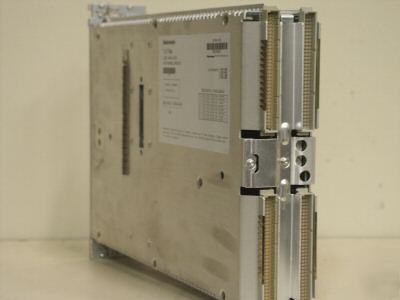

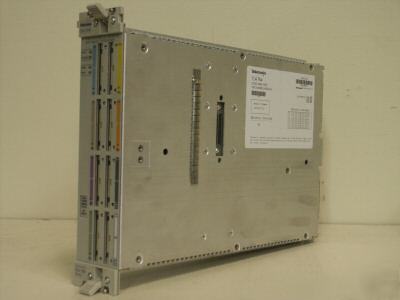

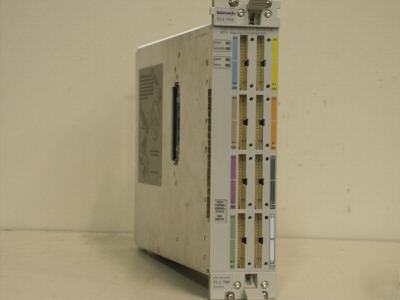

Tektronix TLA7N4 Module, 136 Channel, 2 GHz Timing/100 MHz State, 64k Depth.
TLA7N4 - 136-Channel Logic Analyzer module, 2 GHz timing, 100 MHz state, 64 Kb depth. Options for up to 4 Mb depth and/or 200 MHz state.

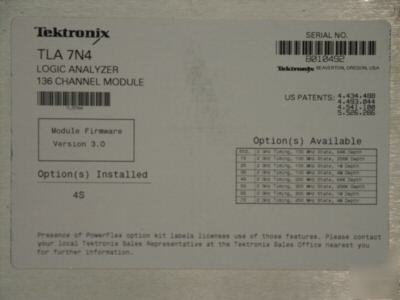

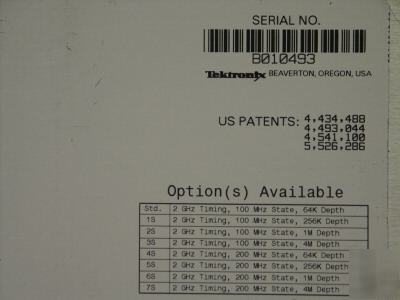

(Base configuration is 64 K depth at 100 MHz state)
Opt. 1S - Increase to 256 K depth at 100 MHz state.
Opt. 2S - Increase to 1 M depth at 100 MHz state.
Opt. 3S - Increase to 4 M depth at 100 MHz state.
Opt. 4S - Increase to 64 K depth at 200 MHz state.
Opt. 5S - Increase to 256 K depth at 200 MHz state.
Opt. 6S - Increase to 1 M depth at 200 MHz state.
Opt. 7S - Increase to 4 M depth at 200 MHz state.
You can increase the memory depth and state speed of most existing TLA Series logic analyzer modules. You can also install a TLA7N4 logic analyzer module into an existing TLA715/721/7XM/7012/7016 mainframe. Please refer to the TLA Family Upgrade Guide for further details.
136 Channel Logic Analyzer with up to 8 Mb Depth
MagniVu Acquisition Technology Provides 2 GHz (500 ps) Timing Resolution to Find Difficult Problems Quickly
Up to 200 MHz State Acquisition Analysis of Synchronous Digital Circuits
Simultaneous State and High-speed Timing Analysis Through the Same Probe Pinpoints Elusive Faults Without Double Probing
500 MHz Deep Timing Analysis with Up to 8 Mb Per Channel
Glitch and Setup/Hold Triggering and Display Finds and Displays Elusive Hardware Problems
Transitional Storage Extends the Signal Analysis Capture Time
Broad Processor and Bus Support
Hardware Debug and Verification
Processor/Bus Debug and Verification
Embedded Software Integration, Debug and Verification
All Items sell with 5 days right of return, and 15 days GUARANTEE on all parts and labor.
If in order to comply with our guarantee, we need to refund your money, you will get a FULL refund for the price of the unit...
If you need to make use of the 15 days Guarantee - We will fix, or replace, your unit. In case every attempt to fix or replace it fails, we’ll refund your money.
