Hp 16754A logic analzer module 600MHZ / 4GHZ / 4M /68CH

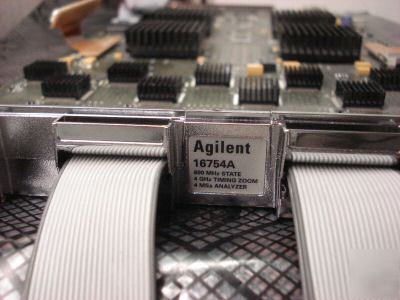

HP 16754A Logic Analzer Module 600MHz / 4GHz / 4M /68ch.
The Agilent 16754A 600 MHz state and 4 GHz timing analysis module with 4M memory, delivers the performance and capabilities you need to debug and validate digital systems using today's new high-speed system interconnects. The innovative "eye scan" mode in the 16754A enables you to examine eye diagrams on multiple circuit nodes simultaneously, for a rapid, comprehensive view of signal integrity. Another feature, "eye finder" automatically adjusts the position of the data valid window on every channel independently, ensuring the most reliable data capture on high-speed interconnect and buses.
* "Eye scan" feature saves you time and gives you confidence by measuring eye diagrams on hundreds of channels simultaneously without having to move probes
* 4 GHz "timing zoom", (simultaneous timing analysis on all channels), with 64 K memory for unprecedented time coverage of high-resolution timing measurements
* "Eye finder" feature automatically adjusts data valid window position on each channel with ps resolution .

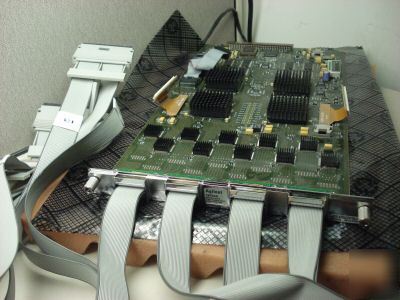

Used, system pull tested good.
This item is sold with a 15-day NON DOA warranty, the seller reserves the right to choose to either replace or refund at our discretion, based on the availability and feasibility of replacement product.
