Tektronix 7834 oscilloscope 7A16A 7A26 7B92A 7B71 OPT02

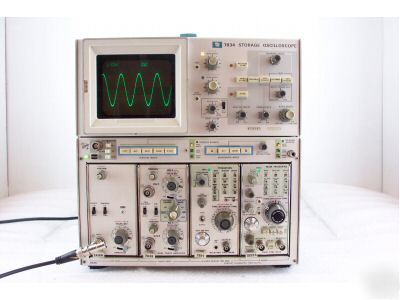

Tektronix 7834 Storage Oscilloscope w/ Plug Ins Opt. 02
The 7834 Storage Oscilloscope has a stored writing speed of 2500 cm/µs, enabling storage of single-shot rise times to 1.4 ns (bandwidth DC to 400MHz). Storage modes include bistable, variable persistence, fast bistable, and fast variable persistence. Uses 7000-Series plug-ins.
This module of a single channel amplifier is one of the fastest amplifiers from the 7000er series with a high impedance feed impedance. The still faster amplifiers have an input impedance of 50 ohms. The amplifier is very similar to the two-channel 7A26 amplifier.
This plug in is one OF the chamfered amplifier OF the 7000 of series with A high input impedance. The more faster amplifiers have the of 50 ohm of inputs.
Bandwidth 225 MHz (depending on mainframe)
Vertically deflection 5 mV/DIV tons of 5 V/DIV in A 1, 2, 5 sequence
The 7A26 Amplifier Plug-In is one of the most popular plug-ins used today for the 7000-Series Oscilloscope Mainframes. This dual trace plug-in offers 5 operating modes, trigger-source selectability, and trace identify. Vertical sensitivity of 5 mV/div to 5 V/div and with appropriate mainframe, DC to 200MHz bandwidth is maintained constant over the entire range. Other features include a 20MHz bandwidth limit switch which reduces noise in lower-frequency applications.
The 7B92A Dual Time Base Plug-In provides a 0.5 ns/div to 0.2 s/div calibrated time base. The unit has triggering to 500MHz, alternate display of Intensified Delaying and Delayed Sweeps, and Int/Ext/Ext÷10/Line triggering capabilities (main and delay external triggering). The 7B92A is recommended to be used only in the 7800 and 7900 Series Mainframes. The unit also may be used is all other mainframes at slower sweep speeds.
The 7B71 Delaying Time Base Plug-In provides bandwidth / sweep speed compatibility with any 7000-Series mainframe, horizontal amplifier input for uncalibrated X-axis deflection from an external source, and time/div range is from 2 ns/div to 5 s/div. Bandwidth: DC to 200MHz Delayed Sweep
