Rockcliff router upgrade:kit 3 pillow block xyz cnc
All three axis, linear components for the Rockcliff CNC machine
This Kit (Kit 3 rev1) contains upgraded linear components for making a small CNC machine. Plans: x6pcs 60 Case Round Rail Carbon Steel shafts + x12pcs Pillow Block + x12pcs Linear bearings + x3pcs Trapezoidal spindle + x3pcs Trapezoidal nut + x3pcs coupling + x10pcs Radial Bearing. Sizes are:
x2pcs W16mm(h6) x 370mm (14 1/2" approx) Round Rail
x2pcs W16mm(h6) x 575mm (22 5/8" approx) Round Rails
x2pcs W16mm(h6) x 720mm (28 3/8" approx) Round Rails
x12pcs 16mm Housing / Pillow Block SC16
x12pcs 16mm Linear Bearings LM16UU x1pce TR12x3D x 400mm (15 3/4" approx)Trapezoidal Spindle x1pce TR12x3D x 600mm (23 5/8" approx) Trapezoidal Spindlex1pce TR12x3D x 850mm ( 33 1/2" approx) Trapezoidal Spindlex3pcs LRM12x3D Trapezoidal Nut x3pcs SRJ-30C-12x6.35 x10pcs 6001 2RS Radial Bearing (ID 12mm OD 28mm W 10mm)
We can also cut / machine custom lengths to suit your application or Substitute any of the above components.
SC__UU: http:// /images/SC__UU.pdf
LM__UU: http:// /images/LM__UU.pdf
Precision Ground Hardened Round Rail W__: http:// /images/Round_Rail%20W.pdf
Trapezoidal: http:// /images/Trapezoidal%20Spindle.pdf
Couplings: http:// /images/SRJ%20Couplings.pdf
Linear Web Pages:
Rockcliff: http:// /forum/viewforum.php?f=23&sid=b624ecde044fae5c6ecb969f54bbd38c
SC_UU: http:// /forum/viewforum.php?f=12&sid=b624ecde044fae5c6ecb969f54bbd38c
LM_UU: http:// /forum/viewforum.php?f=8&sid=b624ecde044fae5c6ecb969f54bbd38c
Round Rail: http:// /forum/viewforum.php?f=9&sid=b624ecde044fae5c6ecb969f54bbd38c
Trapezoidal: http:// /forum/viewforum.php?f=13&sid=b624ecde044fae5c6ecb969f54bbd38c
Couplings: http:// /forum/viewforum.php?f=6&sid=b624ecde044fae5c6ecb969f54bbd38c
Ballscrews, Bearings, Desktop CNC Machines
More information please email Kevin: ****@marchantdice.com

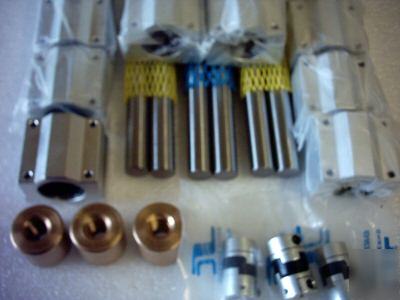

x3 Trapezoidal spindles are included in this offer, not shown in the image
