Orion semi-automatic (h-66) stretch wrapping machine
Listed as used, but it only was used for demonstrations in our showroom. New machine goes for $12,000 brand new.

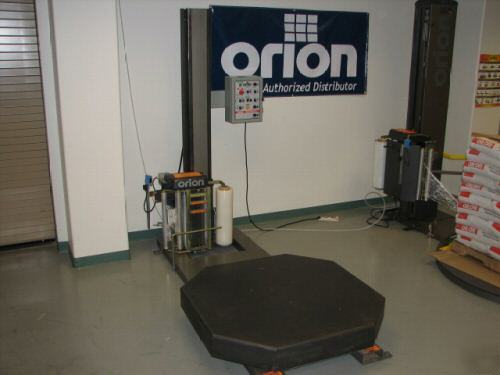

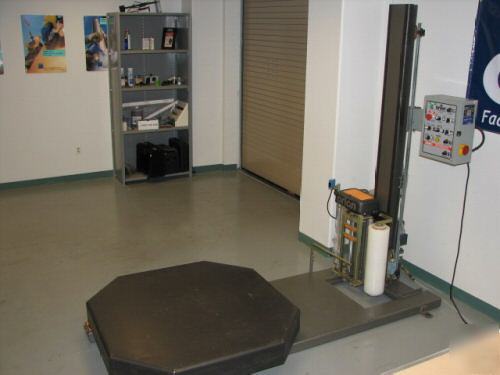

High Profile Semi-Automatic Turntable Stretch Wrapper - H-66 Overview
High Profile Semi-Automatic Turntable Stretch Wrapper - H-66
Orion's most popular semi-automatic high profile turntable stretch wrapper. Pound for pound and dollar for dollar, the H-66 offers more features and value than any other machine on the market. With a weight capacity of 4,000 lbs. and a turntable rotation speed of 14 RPM, the H-66 can handle a wide variety of wrapping requirements. Other features include all structural steel construction, positive turntable alignment, Revo-Logic precise wrap count, and automatic load height photo eye, separately adjustable speed for carriage up and down.

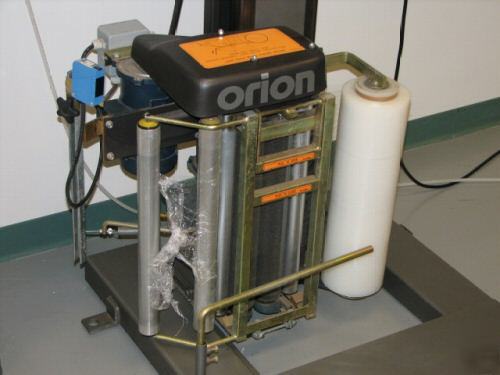

Insta-Thread Film Delivery Systems
The exclusive Orion Insta-Thread film delivery system pre stretches film at a standard rate of 260% for maximum film economy, strength and load-holding power. Threading film through the unit is as easy as opening the hinged frame, pulling the film across then closing the frame.

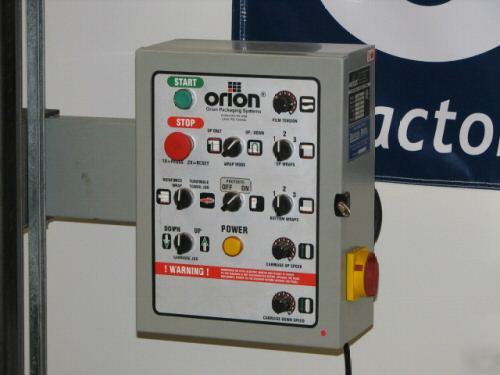

User Friendly Control Panel with Allen Bradley PLC
The H-66 uses the industry standard Allen Bradley 1000 Series PLC for maximum reliability and flexibility. The PLC has a high speed counter which is used by the Revo-Logic system for accurate application of top and bottom wraps, thus saving film on every load you wrap. Non-proprietary industrial grade 22mm switches and buttons are used on the control panel for durability and easy replacement.
Forklift Portable From Front or Rear
Conveniently located fork tubes at the front and rear of the machine. Front tubes are especially useful when machine is placed against a wall. open mechanical design for easy access Major components such as motors and gearboxes are mounted for easy access saving time and money if maintenance is required.
Heavy Duty Turntable Support System
Four sets of twin steel casters support loads weighing up to 4,000 pounds. The turntable is driven by a chain and sprocket for a very positive mechanical coupling. Unlike some machines that use belts, the heavy duty ANSI roller chain is commonly available and is non-proprietary. Positive home alignment assures that the turntable always stops in the same position as where is started. The H-66 is also available with a sealed ring bearing (H-66R) for dusty, dirty environments.
FREE FREIGHT! Butler Brothers will handle the freight on the purchase of this unit.
