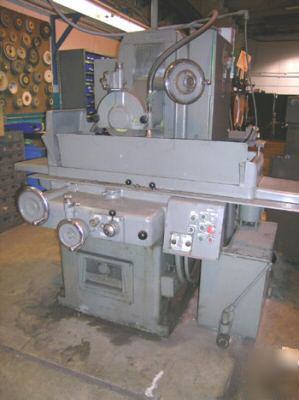

12" x 24" gallmeyer & livingston no. 370 grinder 3 hp
Liberty Machinery Company You are looking at a 12" x 24" Gallmeyer & Livingston No. 370, Elec. Mag. Chuck, Clnt Serial No. 370-223Condition - UsedNew - 1968 Motor Driven with 3 HP, 3/60 AC Spindle Drive Motor. 3/60 AC Motors for
Hydraulic Pump, Rapid Vertical Wheel Head Travel and Coolant System with
Electrical Control Cabinet and Operators Master Control Station. SPECIFICATION:Capability 12" x 24" x 15"
Hydraulic Table Travel Maximum - Longitudinal 29-1/2"
Vertical Movement of Wheel Head 16"
Distance Wheel to Table - Maximum 15"
Spindle Speeds 2000 & 2400 RPM
Longitudinal Table Speeds 3" - 150' per Minute EQUIPPED WITH:Power Downfeed Control, 12" x 24" Electro-Magnetic Chuck with Neutrofier and
Remote Control Station, Over the wheel Dresser. Auto Right Hand Load
Positioning, Handwheel Table Feed Control, Power Rapid Vertical Wheel Head
