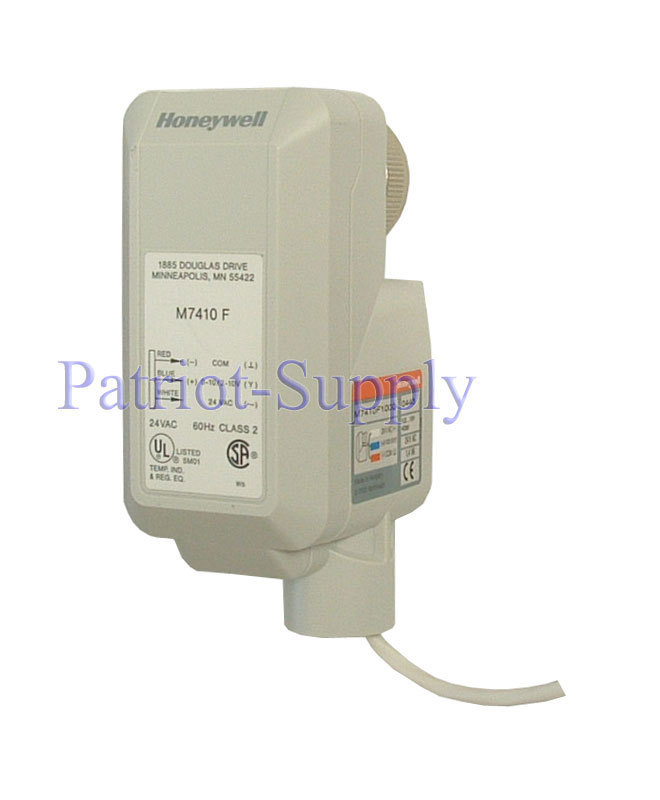

Honeywell M7410F1000 cartridge globe valve actuator
Modulating Cartridge Globe Valve Actuator with 40.5 lb rated force. Cartridge Globe Valve Actuator are small Individual Room Control (IRC) electric actuators provide floating or modulating control of V5852, V5862 two-way or V5853, V5863 three-way valves. Suitable for Excel/IRC system or other controllers providing specified signals. Magnetic coupling for torque limitation independent of voltage supply and self-adjustment of the close-off port. No mounting tools required. Small size allows installation in limited space of fan coil units, induction units, and small reheaters or recoolers. Visual position indication (red pin).
* Fail Safe Mode - Stays in place
* Voltage - 24 Vac, +10/-30 %
* Control Signal - 0-10 or 2-10 Vdc Modulating
* Mounting - Threads onto V58XX valve bonnet
* Timing, Nominal Driving @ 60 Hz (seconds) - 125
* Power Consumption (Driving) - 1.4 VA
* Input Impedance - 100K ohm
* Dimensions (in.) - 2 3/8 in. high x 1 15/16 in. wide x 3 15/16 in. deep
* Dimensions (mm) - 61 mm high x 49 mm wide x 100 mm deep
* Materials (Housing) - Low Maintenance Plastic Housing
* Electrical Connections - Plenum-rated cable
* Electrical Protection - Class I Insulation (24Vac)
* Operating Temperature Range (F) - 32 F to 122 F
* Operating Temperature Range (C) - 0 C to 50 C
* Temperature Range, Storage (F) - -40 F to +158 F
* Temperature Range, Storage (C) - -40 C to +70 C
* Medium Temperature (F) - 266 F Maximum
* Medium Temperature (C) - 130 C Maximum
* Ingress Protection Rating - IP42
* Operating Humidity Range (% RH) - 5 to 95% RH
* Approvals, Underwriters Laboratories Inc - UL94-5V
* Includes - Plenum-rated leadwires
* Comments - Direct/Reverse Acting Switch
* Used With - 1/2 inch and 3/4 inch V58XX Cartridge Globe Valves
* Cable Entry - Threaded conduit connector
