Elcontrol microvip 3 energy analyzer power analyzer
MICROVIP3 is a low cost but high technology threephase energy analyzer.
It is capable of performing 20 true RMS measures on an unbalanced threephase system basing on the measurement of three voltages and three currents.
It is equipped with an on-board printer for manual or timed printout of all measures and calendar-clock for displaying and printing date and hour.
MICROVIP3 can work for over 7 hours on battery power without printing and with disabled display backlight.
This instrument is equipped with an Optic Fiber port for connection to a PC to manage data remotely (a connection kit with 5m Optic Fiber and interface to a 9 poles RS232 is available).

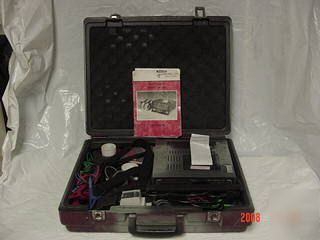

The instrument has been specifically designed and manufactured for portable use in industrial environment and is supplied in a anti-shock carrying case in order to ensure protection and reliability in every working condition.
MICROVIP3 is a valuable instrument for all users of electric energy enabling them to gather a deep knowledge of their installations. It is very useful for installers, maintenance technicians and electricians during diagnosis, and renovation of active installations.
MICROVIP3 performs measures of average threephase voltage, phase-neutral voltage for three phases, equivalent threephase current and current for each phase, total threephase power and for each phase, reactive and apparent power and frequency.
It stores energy consumption data up to 999999MWh and MVArh, active and apparent power peaks averaged on a 15 minutes interval using mobile average calculation (models with 10, 20 or 30 minutes integration time available).

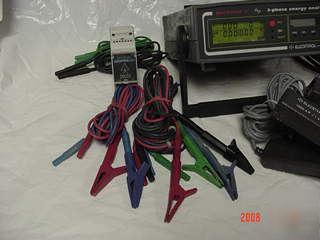

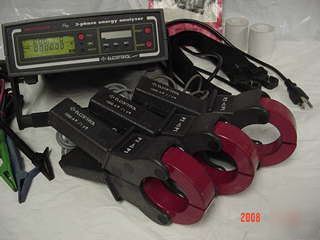

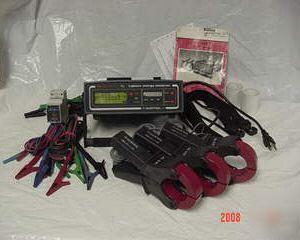

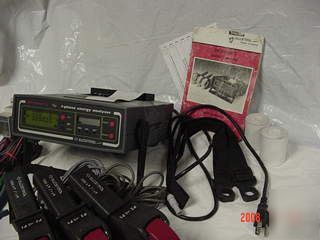

The basic version is supplied with a set of 1000A CT clamps, suitable for measurements from a minimum of 35W (5V, 7A) singlephase up to a maximum of 2,25MW (750V, 1000A) threephase.
Other CT clamp types can also be used up to 3000A.

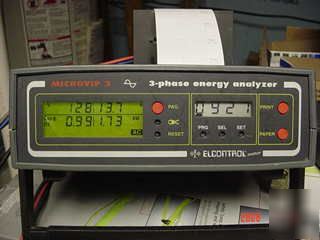

The integrated 42-character printer can be used for manual printouts of all measures associated to date and hour using the calendar-clock or can be programmed to perform automatic timed printouts with intervals from 1 to 99 minutes between two consecutive printouts. Timed printouts are coherent since they are all referred to the start time of the printing.
Some of the results that can be obtained by using MICROVIP3:
Reduce overloads and therefore losses
Verify during operation the correct dimensioning of new installations
Prevent risks due to overheating and lack of insulation of the installations
Approach the problem of Power Factor Correction in a correct way
Identify and eliminate load peaks
Perform checks on naval (0 – 400Hz) and aviation (600Hz) systems
Measurements non-symmetrical signals of PWM controls

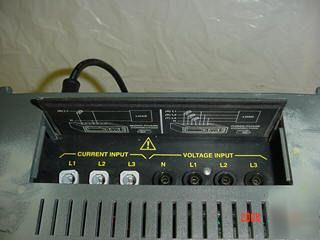

Voltage: (L1-N, L2-N, L3-N) direct inputs max 600 Vrms (STAR);
(L1-L3, L2-L3, L1-L2) direct inputs max 600 Vrms (DELTA) from 0 to 600 Hz;
up to 999999 V (with external PTs whose primary and secondary are selectable).
Current: (I1, I2, I3) direct inputs 1 Vrms up to 600 Hz, or 1 VDC;
1000A from 30 to 600 Hz (with standard AC clamp meters);
from 0 to 600 Hz (with optional AC/DC clamp meters);
up to 999999 A (with external CTs whose primary and secondary are selectable).
maximum acceptable voltage 625 Vrms, peak voltage 825V.
5 times full scale value (with protection trip at threshold value).
m, k, M, W, V, A, VA, Var, Hz, Wh, VArh, VAh, P.F. Cosø, THDF.
1,2 seconds without harmonics - 2,5 seconds with harmonics.
3 voltage scales; 3 current scales with automatic scale change.
Scale change response time: 1,2 secs
Change to higher scale takes place at 105% active scale.
Change to lower scale takes place at 20% of active scale.
One Ni-Cd 6V 940mAh battery of five 1,2V 940mAh elements in series, giving autonomy of approximately 7 hours
without printing and display backlight. Battery recharge time: 24 hours (from mains).
One 3,5V 280mAh lithium battery as memory buffer (guaranteeing memory backup for approximately 7 years).
IMPORTANT: when the lithium back-up battery is changed, date and time are lost.
Battery replacement must be carried out by qualified, authorized staff at ELCONTROL ENERGY service centres.
Backlight LCD with temperature range of -30C to +80C.
4 digit LCD with temperature range of -10C to +60C.
OPERATING CONDITIONS AND TESTING
Environmental operating conditions:
Environmental temperature range: from -10C to +50C.
Relative humidity (R.H.): from 20% to 80%.
500 MOhm between voltmeter input connectors short-circuited between each other and instrument frame, between
power socket and instrument frame.
2 MOhm between voltage and current inputs.
Tested to 2000 Vrms at 50 Hz for 60 seconds between voltmeter input connections (including neutral).
Tested to 3000 Vrms for 60 seconds between each connector and the instrument frame.
Safety : IEC 1010-1, EN 61010-1, 600V cat. III
EMC : EN 50081-1, EN 50082-1, EN55022.
IEC 801-2, ENV50140 IEC 801-3, IEC 801-4
CEE 73/23 - CEE 93/68 (Low Voltage Directive)
230V .± 10% 50/60 Hz or 110V .± 10% 50/60 Hz
6V 940mAh N1-Cd battery with five 1,2V 940mAh elements in series.
fixed sampling, A/D conversion.
Measurement error in environment of 18°C to 25°C (after 10’ warm-up):
expressed as ± % Rdg. (reading) + % F.S. (Full Scale) – see tables.
Additional measurement error outside this temperature range:
± 0,02% F.S. for each °C outside range.
Sensitivity and accuracy of voltage measurements:
Direct input with max voltage = 750 Vrms at Full Scale.
Input voltage peak factor .1,6.
Sensitivity, Full Scale and voltage accuracy
S between 20% F.S. and 100% F.S.
(*) the minimum measurable signal is 1 V.
Sensitivity and accuracy of current measurement:
Direct input with max. 1 Vrms at Full Scale.
Input current peak factor .1,6
Sensitivity, Full Scale and current accuracy
S between 20% F.S. and 100% F.S.
(*) the minimum measurable signal is 2 mV.
(**) Full Scales for 50,0 - 232 - 1000 Amp. with 1000 A/1V clamp meters provided
(Error = sum of instrument + clamp meter errors).
Accuracy does not take account of clamp meter error.
Voltage and current measurement precision as a function of frequency:
no error over errors specified in tables for signal frequencies in 20-90 Hz range.
SECONDARY MEASUREMENTS ACCURACY:
Power (single or three phase), Active Energy (and Power Factor) : class 1 (IEC 1036)
Measurement of other secondary values:
error is expressed by the formula which defines the value (sections 8.6.1, 8.6.2 and 8.6.3), as a function of V, I and W.

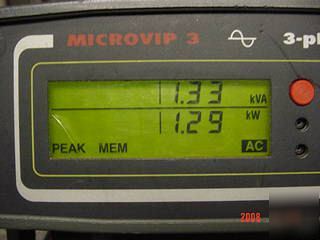

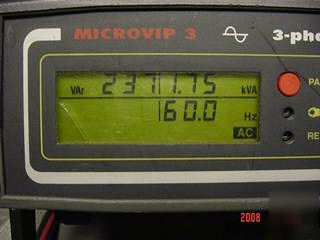

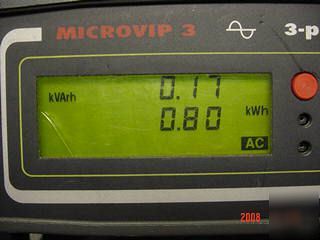

SMALL CRACK PICTURED ON DISPLAY SCREEN, DOES NOT EFFECT FUNCTION
SCRAPES ON HOUSING, FROM REMOVAL OF COMPANY LOGOS
