JD2 model 4 hydraulic tube bender tubing & pipe bending

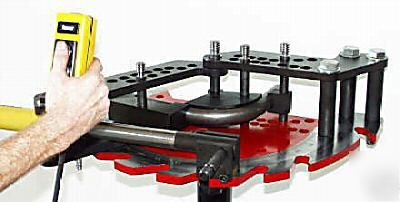

JD2 Model 4 Hydraulic Tube Bender
This listing is for the Model 4 hydraulic bender and cylinder. Pump, hose, pedestal, and all die sets are sold seperately.
The Model 4 tube and pipe bender bends up to 2" schedule 40 pipe, 2-1/2" O.D. round tubing, solid hot rolled steel to 1-1/2" (38 mm) diameter, flats up to 3" (75 mm) wide x 3/4" (18 mm) thick hot rolled steel. It weighs 170 lbs. with the hydraulic cylinder. All links and frame are precision CNC machined from 3/4" and 1" thick steel.
Painstakingly designed to last years in a hard working fabrication shop. The hydraulic cylinder for instance, swivels in a solid CNC machined steel block that pivots exactly at the cylinder's center, thereby preventing side loads on the cylinder's bearing and seals. The pusher block employs a swiveling bronze wear block to eliminate cylinder side loading.
The Model 4 employs a 10 ton single acting spring return cylinder with a stroke of 14". It will bend 90 degrees in less than two complete strokes and 180 degree bends typically require only three stokes.
* Self locking ratcher. Prevents material springback.
* High bending torque over 60,000 in/lbs.
* Durable heavy duty steel construction
* Round tubing up to 2-1/2" (.120 wall)
* Pipe up to 2" schedule 40 and 1-1/2" schedule 80
* Flats up to 3" wide and 3/4" thick
Model 4 Die Sets: Listed below are our most popular Model 4 Bender die sets. If you do not see the die set that you require please contact our sales staff for a recommendation or quote. All dies will bend up to a full U-bend of 180°. Min. Wall denotes the minimum recommended wall thickness for consistent high quality wrinkle free bends at the radius specified. CLR stands for "Center Line Radius", meaning the bend radius as measured from the center rotation point of the die to the middle of the tubing.
* Denotes most popular die sets.
