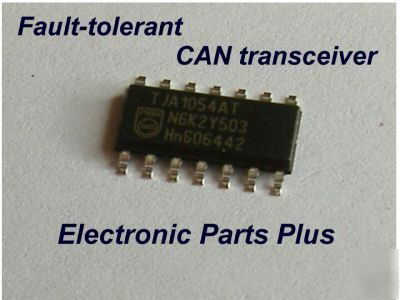

Here is a package of 10 new Phillips/NXP TJA1054AT Fault-tolerant CAN transceivers.
These are new 14 pin surface mount 0644 datecode units and will come to you in cut reel tape
The TJA1054 is the interface between the protocol controller and the physical bus wires in a Controller Area
Network (CAN). It is primarily intended for low-speed applications up to 125 kBaud in passenger cars. The
device provides differential receive and transmit capability but will switch to single-wire transmitter and/or
The TJA1054T is pin and downwards compatible with the PCA82C252T and the TJA1053T. This means
that these two devices can be replaced by the TJA1054T with
These ICs are optimized for in-car low-speed communication
· Baud rate up to 125 kBaud · Up to 32 nodes can be connected
· Supports unshielded bus wires
· Very low ElectroMagnetic Emission (EME) due to built-in slope control function and a very good matching
of the CANL and CANH bus outputs
· Good ElectroMagnetic Immunity (EMI) in normal operating mode and in low power modes
· Fully integrated receiver filters
· Transmit Data (TxD) dominant time-out function. Bus failure management
· Supports single-wire transmission modes with ground offset voltages up to 1.5 V
· Automatic switching to single-wire mode in the event ofbus failures, even when the CANH bus wire is short-
· Automatic reset to differential mode if bus failure is removed
· Full wake-up capability during failure modes.
· Bus pins short-circuit safe to battery and to ground
· Bus lines protected against transients in an automotive environment
· An unpowered node does not disturb the bus lines.
· Low current sleep and standby mode with wake-up via the bus lines
· Power-on reset flag on the output.
The price listed is for a package of 10 units.
Data for this IC can be found HERE:
