Metal bender bench mount or portable diacro lubow

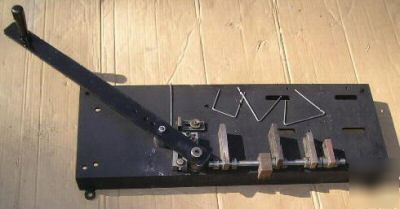

Bench type metal bender. Bender will make bends in metal pieces as shown in one of the pictures. It will bend easily up to (9) 9 AWG wires or 1.5" x 0.15" steel flat. One of the dies has a slot and is adjusted for work piece thickness, the other die is stationary and angled for making bends up to 120 degrees. A movable stop is preset for amount of bend. On the 24" handle is a roller that pushes on the piece being bent. The roller can be moved to 4 different positions on the handle. In back of the bender is a rod with 4 different position/length stops. These can be preset for 4 different work pieces. These stops can be adjusted by moving locking collars and securing them in new position. At the base of the bender are 4 mounting feet or the bender can be used as portable. Dimensions- 10" x 29" x 5" high. For questions please send email to: ****@warwick.net
Click to view supersized image
Click to view supersized image
Click to view supersized image
Click to view supersized image
Click to view supersized image
