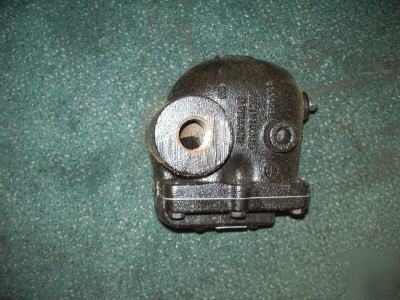

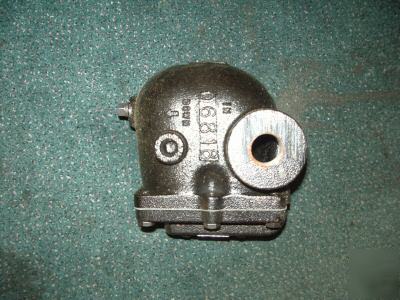

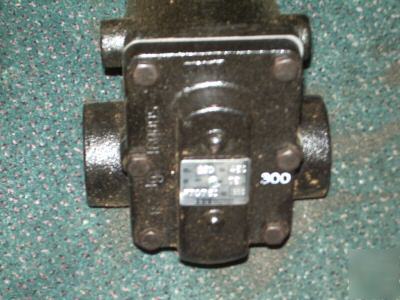

Beartrap ser 1 in-line float/thermostatic steam trap
Characteristics of Float & Thermostatic Traps:
* Completely drains condensate at saturation temperature.
* Modulates to handle light or heavy loads, continuous discharge equal to condensing load.
* Separate thermostatic vent allows venting of air during start-up.
* Air venting reduces warm-up time and improves heat transfer.
* Modulating ports provide long life.
* Internal parts can be easily renewed without disturbing pipe connections.
* Float or bellows may be damaged by water hammer.
* Does not withstand freezing temperatures.
Features of Hoffman Specialty Float & Thermostatic Traps:
* Large ports handle high capacities.
* Wide range of seat pressures available - up to 175 psig.
* Durable, cast iron bodies provide long service.
* Stainless steel valve trim, floats and air vents increase service life.
* In-line horizontal piping connections simplify installation and maintenance.
* Removable cover for easy in-line maintenance.
Primary Applications of Float & Thermostatic Traps:
* Shell & tube heat exchangers.
* Tank heaters with modulating temperature regulators.
* Unit heaters requiring fast venting.
* Fast heating start-up applications.
* This item is brand new and still in box with parts and manual
