New spectrum analyzer/signal generator AT5011,110/220V

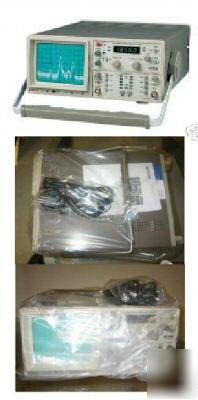

Brand New 1050MHZ Spectrum Analyzer with Tracking Generator
Frequency range: 0.15- 1050 MHz
Center frequency display accuracy: ±100kHz
Marker accuracy: (0.1% span +100kHz)
Resolution of frequency display: 100kHz（4.5 digit LED）
Resolution bandwidth is 100KHz
Frequency scanwidth accuracy: ±10%
Frequency stability: better than 150 kHz/ hour
IF Bandwidth (-3dB): 400 kHz and 20 kHz;
Amplitude range: -100dBm to +13 dBm
Screen display range: 80 dB (10dB/div.)
Reference level:-27dBm to +13 dBm (in 10dB steps)
Reference level accuracy: ±2dB
Average noise level: -90dBm (20 kHz Bandwidth)
Distortion: < -55 dBc of 2nd and 3rd harmonic
Third order intermod.:-70dBc (two signals > 3MHz apart)
Sensitivity: Better than -90dBm
Log scale fidelity: ±2dB (without attn.) 500MHz
Input attenuator: 0 to 40 dB (4×10dB steps)
Input attenuator accuracy: ±1dB/10dB
Max. input level: +10dBm, ±25V DC (0dB attn.) +20dBm (40dB attn.)
Frequency scanwidth: 100 kHz/div. to 100MHz/div., in 1-2-5 steps and 0Hz/div.(Zero Scan)
Output Frequency: 0.15 MHz to 1050 MHz
Output attenuator accuracy: ±1dB
Output attenuator: 0 to 40dB (4×10dB steps)
Radio Frequency Interference(RFI): <20dBc,Output level range: -50dBm to +1dBm (in 10dB steps and var.)
4: Signal Cable with BNC Connector
5: Thin Cable with BNC Connector
