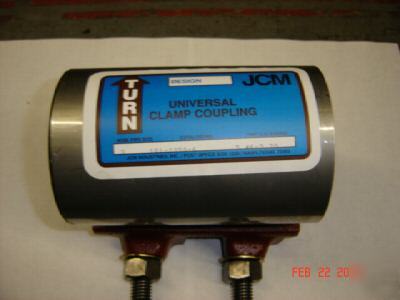

Jcm 6" full circle repair clamp coupling
JCM 101 Universal Clamp Couplings
JCM 101 Universal Clamp Coupling - Single Band
JCM Universal Clamp Couplings provide a full circumferential seal and wide range for the
permanent repair or reconnection of asbestos-cement, cast iron, ductile iron, PVC, HDPE and
other types of pipe. Critical design factors include:
Balanced, Low Profile Ductile Iron lugs (ASTM A536)
with mutually supporting sliding fingers provide
distortion free tightening over a wide range. Ductile Iron lugs offer corrosion resistance and the
most efficient method of transfer of energy from the fastener attachment directly to compression
Corrosion Resistant Type 304 Stainless Steel Band
conforms to pipe irregularities, maintaining
sealing pressure over the entire gasket area. Design criteria requires gauge thickness increase
with clamp size. This is just one of the design points which enables JCM Universal Clamp
Couplings to withstand the internal forces involved with large pipe repair.
of stainless band to lugs is a structurally sound fabrication design element which
“turbo torque†capabilities ensuring permanent repairs on high
with long tapered ends and recessed bridge plate assures even gasket pressure
through out the range - without wrinkling or crimping.
Diamond gridded, 1/4†thick gasket (JCM
standard on nominal sizes 4†and larger) adapt to pitted or uneven pipe surfaces to completely
seal damaged areas. Standard gasket is compounded for use with water, salt solutions, mild
acids, bases and sewage. Other gasket compounds for exotic line contents are available.
for greater torque ratings are provided on 14†clamps and larger. The 3/4†bolts have bolt
torque capability in excess of 150 ft. lbs. These higher torque value capabilities allow JCM
Universal Clamp Couplings to go beyond the “standard installationâ€.
