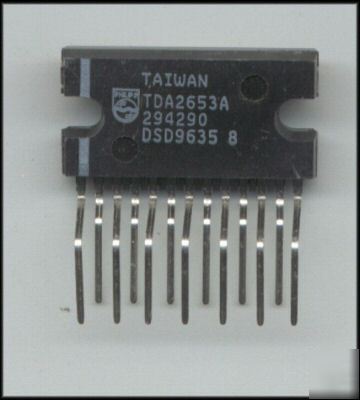

2653 / TDA2653A / TDA2653 vertical deflection circuit
Now over 1,500 items in our Store!
The TDA2653A is a monolithic integrated circuit for vertical deflection in large screen colour television receivers.
The circuit incorporates the following functions:
Oscillator; switch capability for 50 Hz/60 Hz operation
Blanking pulse generator with guard circuit
Sawtooth generator with buffer stage
Preamplifier with fed-out inputs
Output stage with thermal and short-circuit protection
