42" blanchard vert-spindle rotary surface grinder 22532

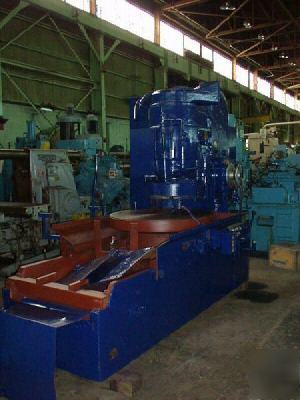

42" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER
New 1967, Serial No 12116, Model 22D42
42" Diameter Magnetic Chuck w/Variable Neutrofier
24" Vertical Range - 50 HP Spindle Motor
22" Cortland Segmented Grinding Wheel w/(5) Segments
Hard Ways - Trabon Lubrication System
Magnetic Chuck, Diameter............... 42"
Swing Between Coolant-Guards........... 48"
Magnetic Chuck Work Load Capacity...... 3000 LBS
Chuck Thickness........................ 13/32"
Grinding Vertical Range, Maximum....... 24"
Grinding Wheel Speed................... 720 RPM
(6) Chuck Speeds, Range................ 6 to 33 RPM
Power Down Feeds, Range................ .004 to .080 IPM
Down Feed Before Feed Trips, Max....... .298"
Spindle Motor, Horsepower.............. 50 HP
Chuck Rotation Motor................... 3 HP
Electrical System...................... 440/3/60
Overall Dimensions, L x W.............. 11'8" x 7'
Overall Height......................... 10'1"
Weight, Approximately.................. 14500 LBS
REPLACEMENT PRICE: Is Approximately... $230,000.00
PRICE: F.O.B. OUR WAREHOUSE........... $24,500.00
Note: RUNNING 440 VOLTS. RUNS O.K. GRINDER IS MISSING THE TRABON
All machines/equipment subject to prior sale.
