Ellis model 9400 drill press

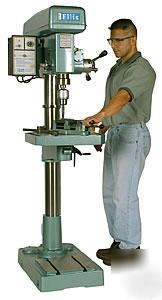

Ellis - Drill Press - Model # 9400
* Variable speed from 0 to 1200 rpm
* Adjust speeds while operating in the material
* High torque at low rpm speeds
* Instantaneous reversing for tapping Tapping head is not needed. Machine tap goes into ball bearing chuck. Can tap either left or right handed threads
* Drill head and table rotate 360° around column
* T-slotted production table raises & lowers effortlessly
* Quill lock and depth control
* Same ball bearing chuck holds both drill and tap
* Continuous speed adjustment while in operation
* Instantaneous reversing for tapping
* One turn on knob for adjusting speed (0 to 1200 rpm)
2 HP A.C. Single Phase-choose 110/220
Steel 1 1/16" Cast Iron 1 1/4"
Production Type:T- Slotted 16 5/8" X 18 5/8" 2 Slots for 1/2" T-bolts Ground Working Surface Coolant Trough
T- Slotted 18" X 25 1/2" 2 Slots for 1/2" T-Bolts Ground Working Surface
Height 70 1/2" Width 20" Depth 34 1/4"
Ball Bearing Drill chuck 1/8"-5/8" W/3MT arbor
Ball bearing Drill Chuck 1/8"-3/4" W/3MT arbor
