Hp 8663A 002 synthesized function generator 0.1-2650MHZ

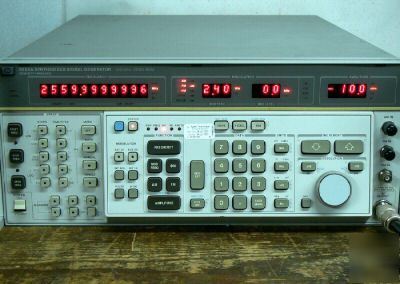

This is an Agilent HP 8663A Synthesized Function Generator 100 kHz - 2650 MHz with Option 002 - please check actual pictures below: unit appears to be in good working condition: powers on, produces output as expected at the very edge of its capabilities even, though it shows Status Code of 107 (AM/FM level) - FM modulation shown in one of the pictures seems to be quite good. Its last calibration sticker suggests ended by July 2003 and was serviced by Agilent. Packed well this heavy guy will weigh about 85-90lbs depending upon the packaging used (weighs ~73lbs unpacked). Will have a power cord. Contact me for any questions you may have and thanks for your attention!
Click here for Service PDF Manual
The 8663A Synthesized Signal Generator is ideal for performing precise receiver sensitivity tests either manually or in automated systems via the HP-IB interface.
â–ª Derives RF performance from an indirect frequency synthesis technique
â–ª 0.1 Hz from 100 kHz to 2650 MHz frequency resolution
▪ Output is available from +13 to -139.9 dBm with output level accuracy held to ± 1 dB using microprocessor correction
â–ª Versatile phase-locked AM/FM using either internal 400 Hz and 1 kHz rates or externally applied modulating signals (either DC or AC coupled)
â–ª Generates phase and pulse modulation
Option 002 = Wideband linear phase modulation
http://www.bpai.us/min/HP_8663-0.jpg http://www.bpai.us/min/HP_8663-1.jpg http://www.bpai.us/min/HP_8663-2.jpg http://www.bpai.us/min/HP_8663-3.jpg http://www.bpai.us/min/HP_8663-4.jpg http://www.bpai.us/min/HP_8663-5.jpg http://www.bpai.us/min/HP_8663-6.jpg http://www.bpai.us/min/HP_8663-7.jpg http://www.bpai.us/min/HP_8663-8.jpg http://www.bpai.us/min/HP_8663-9.jpg
Click on thumbnails above for big pictures!
