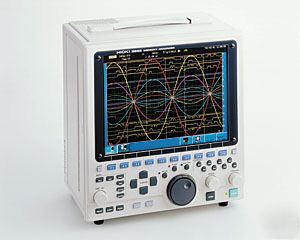

Hioki 8855 high speed memory recorde power monitor feat
"Your One Stop Source for Sales & Calibration of Test & Measurement Equipiment"
*Hioki 8855 High Speed Memory Recorde Power Monitor Feat *
8ch high-speed isolated inputs of 20MS/s, Max.
512 M words long storage memory
Maximum 8 analog channels and 16 logic channels
20MS/s, 8ch 12-bit high-speed isolated Input (8950/ 8951/ 8952)
1MS/s, 8ch 16-bit HIGH RESOLUTION Input (8953-10)
Max. 512 M words long storage memory
Zoom and scroll functions providing enlarged and compressed displays
using 8950 ANALOG UNIT /option 5 mV to 20 V/division, 12 ranges (20 division f.s.), resolution: 1/400 of range
AC voltage for possible measurement/ display using the memory function : 280 V rms
Frequency band DC to 10 MHz ±3 dB (used 8950 ANALOG UNIT /option)
Time axis at memory function 5 µs to 5 minutes/division, 24 settings; external sampling (100 samples/division, desired setting)
Measurement functions (1)Memory, (2)Recorder,
(3) Recorder & Memory(Version 2.00 or later),
(4)FFT(Version 2.00 or later),
(5)Power Monitor(Function to be added, Additional function provided by the 9549 FUNCTION UP DISK (POWER MONITOR))
Number of input channels Analog (up to 8 channels) + logic (16 channels standard)
Memory capacity 4 M words/channel(Total 32 MW)
Max.64 M words/channel(Total 512 MW, Option)
Data storage Floppy disk drive, Type II PC card slot (9726/ 9727/ 9728/ 9729 PC card, 128MB to 1GB), MO drive (optional), Hard disk drive (optional)
Interfaces(optional, sold separately) GP-IB: GP-IB CARD 9558 used, RS-232C: RS-232C CARD 9557 used
This function is to be supported from version 2.00 of this unit.
Recording and display 10.4-inch TFT color LCD, 216 mm (8.5 in) × 30 m (98.4 ft), thermal paper roll
Other functions Waveform judgment function*, Scaling, Vernier function*, pulse count function, waveform search function, cursor measurement, comment insertion, other functions *This function is to be supported from version 2.00 of this unit.
Power supply 100 to 240 V AC (50/60 Hz)
Dimensions, mass 275 mm(10.83 in)W × 280 mm(11.02 in)H × 170 mm(6.69 in)D, 6.3 kg (222.2 oz) (base unit only)
Accessories Power cord (1), PC card protector (1), input cord label (1), wave viewer software (1)
GOODS: ALL our items are FACTORY NEW
