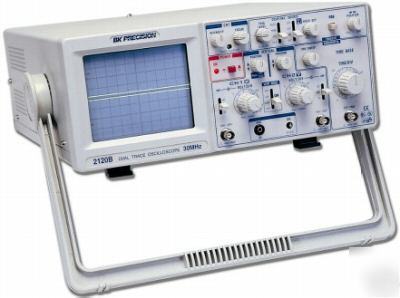

New bk b+k precision 30 mhz oscilloscope with warranty
VERTICAL AMPLIFIERS (CH 1 and CH 2)
5 mV/div to 5 V/div, 1 mV/div to 1 V/div at X5
10 steps in 1-2-5 sequence. Vernier control provides full adjustment between steps.
5 mV to 5 V/div: DC to 30 MHz (-3 dB). X5: DC to 10 MHz (-3 dB)
0.1 us/div to 2s/div in 1-2-5 sequence, 23 steps. Vernier control provides fully adjustable sweep time between steps.
AUTO (free run) or NORM, TV-V, TV-H
Maximum External Trigger Voltage
Used for triggering from horizontal sync pulses
Used for triggering from vertical sync pulses
HORIZONTAL AMPLIFIER (Input through channel 2 input)
Switch selectable using X-Y switch. CH 1: X axis
Rectangular with internal graticule
Electrical, front panel adjustable
1 kHz (+-10%) Positive Square Wave, 2 V p-p (+-3%)
50 0 to 95 0 F (10 0 to 35 0 C), <= 85% RH
32 0 to 104 0 F (0 0 to 40 0 C), <=85% RH
-4 0 to 158 0 F (-20 0 to +70 0 C)
100/120/220/240 VAC +- 10%, 50/60 Hz, approximately 40 W.
7x14.5x17.25'' (180 x 370 x 440 mm)
Approximately 17.2 lbs. (7.8 kg)
SUPPLIED: Instruction Manual, Two PR-33A x1/x10 Probes or equivalent, AC Power Cord, Spare Fuse
OPTIONAL: PR-32A Demodulator Probe, PR-37A x1/x10/REE Probe, PR-100A x 100 Probe, PR-55 High Voltage x1000 Probe, LC-210A Carrying Case
