> Numatics 2002 series air solenoid valve R21BBDZ4ML00061
Numatics 2002 series air solenoid valve R21BBDZ4ML00061
Numatics 2002 Series Solenoid Air Pilot Actuated Valve R21BBDZ4ML00061 (032807708230)
This does not mean that the unit doesn’t work, only that we have not tested or checked it out.
This may also mean that we are not knowledgeable in that specific item.
Please call MONIQUE Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions
between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time.
The Item may vary from picture as manufacture may change model appearance.
All information, including description, specifications and features are from a manufacturers
data sheet or manual and are subject to change without notice.
Meaning that all information included in the description, specifications and features
What you see is what you get! If it doesn’t show it you probably won’t get it!
MHZ ELECTRONICS INC. - CALL MONIQUE - 1-866-MHZ-ELEC MHZ ELECTRONICS INC. - CALL MONIQUE - 1-866-MHZ-ELEC MHZ ELECTRONICS INC. - CALL MONIQUE - 1-866-MHZ-ELEC MHZ ELECTRONICS INC. - CALL MONIQUE - 1-866-MHZ-ELEC - MHZ ELECTRONICS INC. - CALL MONIQUE - 1-866-MHZ-ELEC MHZ ELECTRONICS INC. - CALL MONIQUE - 1-866-MHZ-ELEC MHZ ELECTRONICS INC. - CALL MONIQUE - 1-866-MHZ-ELEC MHZ ELECTRONICS INC. - CALL MONIQUE - 1-866-MHZ-ELEC

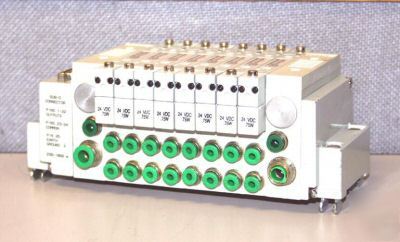

Numatics 2002 Series Solenoid Air Pilot Actuated Valve R21BBDZ4ML00061
* Model Number: R21BBDZ4ML00061
* Serial Number: Quantity Available
* Electrical Requirements: 24 Volts DC, 1.2 Watts
* Includes: 8 - R21BBDZ4ML00061, and 1- Base
* Fieldbus Electronics and I/O Capable
* Solenoid Air Pilot Actuated
* Elimination of internal wiring
* Pusher piston - high spool shifting force
* Adjustable port sizes utilizing interchangeable cartridge fittings
* Modular reality, plug together flexibility in design! Sub-miniature 3-way and 4-way solenoid air pilot actuated valves. Modules are available in manifold & base mount. Electronic interface options include DeviceNet, Profibus-DP, 1771 Remote I/O, and DeviceLogix.
* Port Sizes: 1/8 NPTF, 4mm, 6mm 5 ported, 2 & 3 position, 4 way
* Flow Capacity: 11.5 SCFM @ 80 PSIG / 246 NI/m @ 6 bar
* Operating Pressure Range: 28" Hg. Vacuum to 150 PSIG / Vacuum to 10 bar
* Pilot Pressure Range: 35 to 115 PSIG / 2.5 to 8 bar
* Temperature Range (Ambient): -10°F to +115°F / -23°C to +46°C
