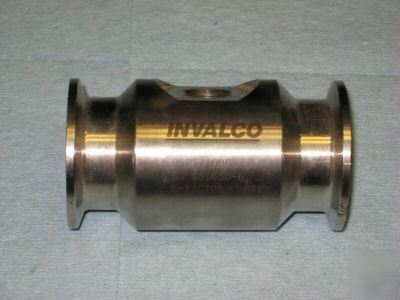

Invalco ws series turbine flow meter 1" in/out 1000 psi
Welcome to Surplusmeister Super Store!!!
The model number for this unit is WSP5/1000

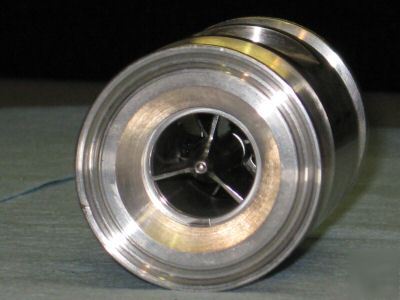

* Rotor Supports - have up and downstream straightening vanes to enhance accuracy.
* Helical Cast Rotor - in a heavy duty stainless steel (CD4MCu) design for durability and long service life.
Stainless Steel Body and Wetted Parts - provide years of corrosion free service.
Electropolished/Super Passivated Rotor and Support - to insure clean flow conditions.
* 1 Inch MNPT Electrical Housing Adapter - to facilitate meter mounted electronics or conduit.
* Journal Bearings of Rulon 641 for non 3-A compliant meters.
Linearity (*Please see footnote 1)
Repeatability (Please see footnotes 1,2)
125% of flow rate for intermittent periods.
1/2†to 2†Meter: 2-5 milliseconds for step change in flowrate.
3†Meter: 10-25 milliseconds for step change in flowrate.
1/2†(*Please see footnote 2) to 2†- 100 Hz to 1,000 Hz.
1/2†(*Please see footnote 2) to 2†= 100 mV @ 100 Hz to 1.5 V (RMS) @ 1,000Hz.
3†= 80 mV @ 50 Hz to 800 mV (RMS) @ 500 Hz.
Tri-Clamp End Connections are limited to 250 psi @ 375°F maximum.
The in/out flow area is 1" wide by 3 3/4" long.
