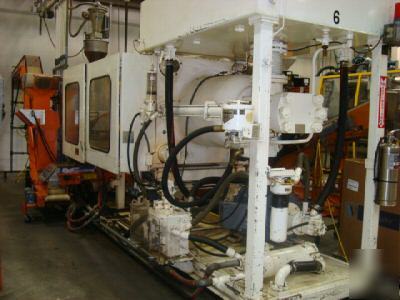

1994 van dorn 500-ton plastic injection molding machine

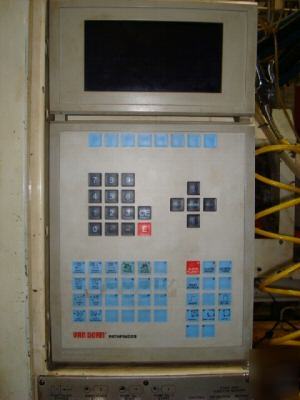

VAN DORN 500-TON, MODEL 500HRS-48F, 48 OZ (1.36 KILOS), 1994, SIEMENS EL CONTROLS, 32.5" x 32.5" (826 MM x 826 MM) TBS, 47" x 47" (1194 MM x 1194 MM) PLATENS, 68" (1727 MM) MAX. DAYLIGHT, 75 HP MOTOR AT 460V, NOZZLE 1/2"R, 3/16"O, VARIABLE VOLUME PISTON PUMP SYSTEM, PROPORTIONAL RELIEF AND PROPORTIONAL DIRECTIONAL FLOW VALVES, POTENTIOMETER AND LVDT UNITS FOR POSITIONING, VIBRATION MOUNTING PADS, CORE & EJECT MOTION KEY SWITCH, AIR BLAST CIRCUIT SWITCH ACTUATED TIMER CONTROLLED WITH SOLENOID AIR VALVE, FILTROIL OIL FILTRATION, LINCOLN CENTRO-MATEC GREASE LUBE SYSTEM WITH OVERSIZED LUBE LINES TO PLATEN SHOES AND EJECTOR GUIDE BARS BY CIRCLE COUNT, FOUR PIECE NON-RETURN VALVE, 25-TON OF EJECTOR FORCE, 20:1 L/D WILLERT SCREW, CLAMP DECOMPRESS ALTER INJECTION WITH ADJUSTABLE TIME DELAY, ADDITIONAL K.O. HOLES ON PLATENS, POWER SWIVEL FOR INJECTION UNIT COMPLETE, DRAWER TYPE HOPPER MAGNET, 24 VDC OUTPUT SIGNAL AT PRODUCTION COMPLETE, INDICATOR LIGHTS AT SOLENOID CONNECTORS, FEEDTHROAT TEMPERATURE CONTROL WITH READOUT, HEATER BAND FAILURE DETECTOR, ABILITY TO PROCESS WITH ZERO BACK PRESSURE, HYDRAULIC KO, STATIONARY OR BUMP KO, MULTI HYDRAULIC KO, KO HOLD SEQUENCE, STATIONARY EJECT WITH INDEPENDENT CONTROL, ADDITIONAL PUMP TO ACHIEVE SPEED OF 4"/SEC FOR STATIONARY EJECTORS, PHOTO ELECTRIC EYE CIRCUIT, POSITION SETTABLE, ON CLOSE STROKE FOR BEAM INTERRUPTION, WIRED TO RECEPTACLE VERSES TERMINAL TRIP, TOTAL MACHINE DIMS: 30'6"'L x 6'9"W x 9'6"H (7'6" WITH HYDRAULIC TANK REMOVED), TANK DIMENSIONS: 7'2"L x 5'W x 2'3"H, WEIGHT: 54,000 LBS., MACHINE DOES NOT HAVE CORE PULL, WEBSITE PHOTOGRAPHS http:// /VanDorn500-48-1994.htm VIDEO http:// /watch?v=-HejKh8vRSg MACHINE SPECIFICATIONS http:// /VanDorn500HRS.PDF
