2 way 3 amps step down dc-dc regulator power supply

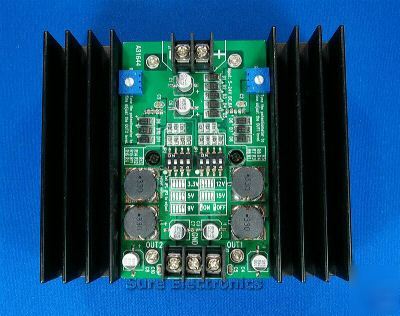

2 Ways, 3A Step Down DC-DC Regulator
This 2 Ways, 3A Step Down DC-DC Regulator is manufactured by Sure Electronics and designed for heavy duty use. It is a low-cost, high-reliable, heavy duty load DC-DC converter. Both ways could generate 3A continuous output and work stably. Output voltage could be selected from 3.3/5/9/12/15 by encode switches, and could be well adjusted through multiturn potentiometers. If in need, just change some resistor values, and you could get other output value.
All regulators are 100% tested in full load condition, the burning time in test lasts for over 12 hours in several conditions.
All test results are from real measurement, and all diagrams are printed directly from DSO’ screen capture, we promise that all such snaps are reliable and trusty.
DC Output Range could be selected by encode switch. All regulators pass full load burn-in test.
2 Ways, 3A Step Down DC-DC Regulator
Short circuit / Overload/Wrong DC input Polar
Cooling by radiation and Air Flow
28centigrade for full load, 12 centigrade when 50% load
Cold start, 15A at 24Volts DC, with 15Volts, 3A dual way output
+10% and -15%rated output voltage(@15Volts output
3.3/5/9/12/15Volts, adjustable with encoder
Short Circuit Protection (not guaranteed)
10ms, no less than 2ms, less than 100μs at full load and 24V DC input 100% threshold
0~45℃@100%, -10℃@80%, 55℃@60% load
2P / 7.62mm pitch terminal block , 3P / 7.62mm pitch terminal block
