Misc 68 pin stuff for national instruments daq cards
This Kit will connect to a National Instruments 68 pin Male connector Daq Card
This is the most common SCSI connector that NI uses....also called MD68 or SCSI II
THIS IS A MUST HAVE FOR INTERFACING TO THE DATA AQUISITION WORLD
If you have a 68 pin VHDCI type connector ...This is not the kit you Need.....That kit is in the Store under VHDCI
* Jumpers are included and can be moved or removed by loosing the screw
* 4 Extra screw terminals for a common earth ground (SCREW TERMINALS 69 THRU 72)

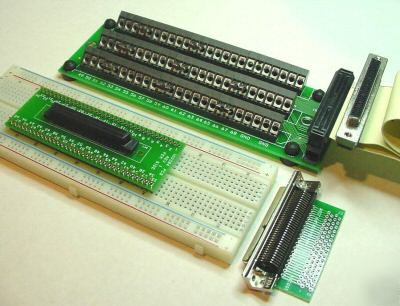

* Qty 1 #100563 68 Pin Male Female Flat Ribbon Cable
* Qty 1 #400061 - 68 Pin Metal Connector Breakout Kit for a quick connect
* Qty 1 #400032 - 68 Pin Easy Connect Kit for plugging into a solderless breadboard for EZ access to all Data Points
* Qty 1 #500042 68 Pin Vertical Screw Terminal Breakout with 45 degree Terminals for Desktop (rubber feet) or Permanent Panel mounting
* Qty 1 #100283 - Breadboard (as shown)
THESE BREAKOUTS ARE BRAND NEW AND DO NOT HAVE ANY BLOWN TRACES
Need a Power Supply ? We have a GREAT Selection of +5V, +12V and +3.3V
Check out our Breadboard Section in our store - DAQ stuff store
See our line of DAQ Equipment which includes
50 Pin Breakouts starting at $24.95 100 Pin Breakouts and Relay Boards 68 Pin Adapters starting at $9.95 68 Pin Breakouts starting at $49.95
New! 50 Pin & 68 Pin DAQ Breadboard EZ-Connect Systems ( which gives you INSTANT ACCESS to your DAQ Card )
National Instruments DAQ & Labview Equipment available New! DB37 Screw Terminal Breakouts for $24.95
500044 (500042 + 100563 + 400061 + 400032)daqstuff
