Advantest R3463 9 khz-3GHZ spectrum analyzer

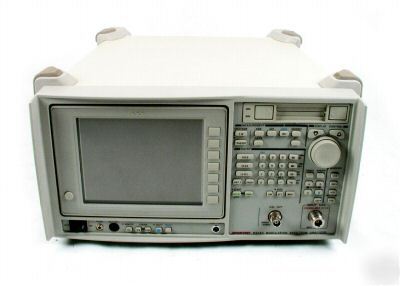

Advantest R3463 9kHz - 3GHz Modulation Spectrum Analyzer
****Tested / Working / Guaranteed / No Reserve*****
The R3463 spectrum analyzer was designed for communications and the cellular industry, but it is also a great general purpose spectrum analyzer even if you never use the advanced modulation capabilities.
The Advantest R3463 Modulation Spectrum Analyzer is for testing new communication systems. In addition to the functions offered by conventional spectrum analyzers, the R3463 have functions for analyzing digital modulated signals such as modulation accuracy and transmission speed. The unit have an easy-to-use one key solutions design that anyone can use. There are independent keys for STD mode which automatically sets PHS, PDC and NADC standard parameters and OBW, ACP and harmonic distortion measurement.
DDS (Direct Digital Synthesizer) technology enables the R3463 excellent basic specifications to fit into a compact size. These specifications include a frequency range of 9 kHz to 3 GHz, highly stable narrow band sweep and high–speed measuring made possible by the newly–developed high speed settling synthesizer. The R3463 provide total support for digital mobile communication equipment in applications ranging from radio systems development to production line adjustment and testing.
* For PHS, PDC and NADC Standards (GSM/DCS1800/DCS1900/DECT/CDMA Measurement Optional)
* Spectrum Analyzer Mode
* Digital Transmission Tester Mode
* Built-In Digital Modulation Analysis Function
* Automatic Setting of Standard Parameters
* STS Mode and Measurement Function Keys
* Compact, Lightweight, 6.5 Inch TFT Color LCD
Automatic Setting of Standard Parameters:
The cumbersome parameter settings required for measuring digital radio system standards such as PHS, PDC, and NADC (GSM, DCS1800, DCS1900, DECT and CDMA optional), are set automatically for each measurement time.
As well as CW mode, for conventional spectrum analysis, the R3463 have a TRANSIENT mode for digital transmission analysis of modulation accuracy and transmission speed. The unit also employ the FAST function, a developed measuring algorithm which greatly reduces the measurement time.
The R3463 has a 'one key solutions' design for simple operation. Basic measurement and analysis functions can be easily started by selecting the desired measurement item.
High Performance Spectrum Analyzer Functions:
The R3463 ia a high performances spectrum analyzer with ample basic functions for waveform analysis in minute detail. The developed high-speed settling synthesizer has greatly improved blanking time during narrow-band sweep (span < 5MHz), providing high speed measurement. The unit has a frequency span accuracy of 1% or less, residual FM 3Hz or less /0.1 sec, and drift 20Hz or less (span < 5MHz).
* Option 09 - CDMA Test Source Control Option.
* Option 15 - Program Loader Option
More Information: http:// /commerce/catalog/product.jsp?product_id=3666&czuid=1194640380016
* Tested by our Lab Technician and in good working condition
* Excellent condition, fully reconditioned by AccuSource Technicians
