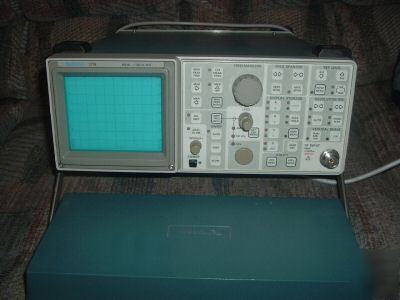

Tektronix 2710 spectrum analyzer 9KHZ to 1.8GHZ
Ready for that hard task to do..
Useful information for better performance:
* Economical, Can Be Configured to Meet Most Budgets
* Excellent Frequency Accuracy and Sensitivity
* 3-Control Operation for Most Measurements
* Broadcast Transmitter Performance
* Communications System Operations
Frequency-corrected tuning and phaselock stabilization enhance the ability to resolve close-in signals and reliably demodulate narrowband signals. Sensitivity up to -127 dBm (-80 dBmV) at 300 Hz resolution bandwidth (RBW) lets you see weak signals. The built-in preamp can improve sensitivity another 12 dB, up to -139 dBm (-92 dBmV). Up to 80 dB on-screen dynamic range ensures visibility of weak signals in the presence of strong ones. The Tektronix 2710 Spectrum Analyzer provides excellent RF performance, a built-in frequency counter, full programmability, digital and true analog displays, high portability, enough nonvolatile memory for saved displays and much more. A straightforward human interface, with conveniently grouped, dedicated front-panel keys and simple, menu-driven functions makes the 2710 easy to learn and use. You can set frequency, span and reference level directly from the front panel. Frequency-corrected tuning and phaselock stabilization enhance the ability to resolve close-in signals and reliably demodulate narrowband signals. Sensitivity up to -127 dBm (-80 dBmV) at 300 Hz resolution bandwidth (RBW) lets you see weak signals. The built-in preamp can improve sensitivity another 12 dB, up to -139 dBm (-92 dBmV). Up to 80 dB on-screen dynamic range ensures visibility of weak signals in the presence of strong ones. A 300 Hz RBW filter with a shape factor <7:1 means you'll see many close-in sidebands and spurious or unexpected signals you might otherwise miss. At the other end of the spectrum the 5 MHz RBW filter is useful when demodulating wideband signals such as actively modulated video carriers. The built-in signal counter, with 0.5 ppm ±10 Hz accuracy, offers added power for rapidly identifying signals. The capability to choose between digital and true analog displays lets you examine signals for characteristics that are not visible on digital-only displays. Sweep speeds of 1 µsec/div, TV Line and TV Field triggering, an internal audio amplifier and AM/FM detectors all make video communications measurements easier. Bandwidth, Carrier-to-Noise, Noise Power, Signal Search and FM Deviation modes provide additional measurement power and convenience.
A 300 Hz RBW filter with a shape factor <7:1 means you'll see many close-in sidebands and spurious or unexpected signals you might otherwise miss. At the other end of the spectrum the 5 MHz RBW filter is useful when demodulating wideband signals such as actively modulated video carriers.
The built-in signal counter, with 0.5 ppm ±10 Hz accuracy, offers added power for rapidly identifying signals. The capability to choose between digital and true analog displays lets you examine signals for characteristics that are not visible on digital-only displays.
THE SERIAL # B010009, 2710-8/19/87
DISPLAY STORAGE-BATTERY P/N2736
INCLUDED ALSO IS A TEK 2710 SPECTRUM ANALYZER CD
