Sikama falcon 8500 reflow solder furnace conveyor oven

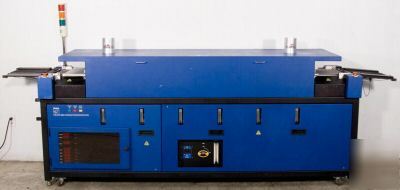

Sikama Falcon 8500 Reflow Soldering Convection/Conduction Furnace
Comes with a manual and what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from Sikama and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
List Price is: $49,275.00 from Sikama.
The Unit's Serial Number Tag Reads:
Sikama International has developed a new line of reflow solder systems known as the Falcon 8000 Series. Incorporating Sikama's unique "thermal technology" based on conduction heating in combination with forced thermal convection, the 8000 Series consists of the 8100 (10 heat zones) and the 8500 (5 heat zones). Each system includes automatic load and unload buffers with appropriate sensors providing SMEMA interface connection to link into automated production lines.
The Falcon 8100 is ideal for applications involving large ceramic substrates requiring progressive ramp up and ramp down reflow profiles and enables a variety of custom reflow profiles due to the versatility resulting from having ten individually controlled heating zones.
The Falcon 8500 is well suited for wafer bumping applications (3-8 inch diameter wafers) as well as accommodating a broad range of substrate materials, high mass components and fixtures. In addition, the Falcon 8000 reflow systems, also excellent for curing epoxies, are powerful, highly efficient, cost effective systems with high production capabilities and are designed to minimize your initial capital outlay and production costs, increase yields, safeguard your product integrity and improve your bottom line.
Maximum Substrate Size: 8" W x 11" L
Time Mode (Dwell & Travel Time): 15 sec. to 99 min. 59 sec. (per zone)
Temperature (Standard): Up to 420°C
Warm-up Time to 230°C: 15 minutes
Alarms: Over/Under Temperature, Gas Flow, Coolant Flow & Temperature, Motor Torque, SMEMA (or other) Interface
Parts Flow: L to R or R to L, In-line (I am not sure which this unit is configured for)
Gas Consumption: 0-600 cubic feet/hour (process dependent)
O2 Level: < 25 PPM (process dependent)
Start-up Power: 11.6 kW @ 240 VAC
Power Consumption: 50% duty cycle or less
For More Pictures Please Click the Following:
* Picture 5 - Top Panel Open
* Picture 6 - Right Front Panel Open
* Picture 7 - Left Front Panel Open
* Picture 8 - Right Conveyor View
* Picture 9 - Left Conveyor View
* Picture 10 - Controller Modules Installed
* Picture 11 - Zone Gas Flow Control (One for Each Zone)
* Picture 12 - Front Panel with Gas Control & Water Cooling Control
* Picture 13 - Connections on the Back Panel
* Picture 14 - Serial Number Tag
