Taco RMB1 radiant mixing block rmb-1

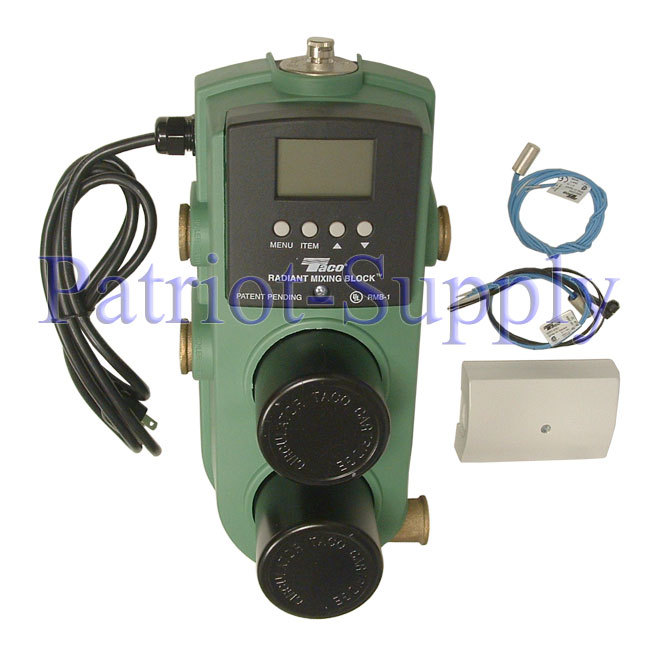

TACO Radiant Mixing Block RMB-1
The Taco Radiant Mixing Block represents a breakthrough in the design, control and installation of radiant systems The patent pending design combines a variable speed injection mixing control, injection circulator,system circulator, and air elimination into a single unit. Extremely versatile, the Radiant Mixing Block can be set up as an outdoor reset control, a setpoint control or a delta T limiting control. All this with no special piping, no balancing valve, no closely spaced tees, no external controls, no complex wiring; just four pipe connections and your installation is complete. Welcome to the new age of Radiant!
The Taco Radiant Mixing Block is a breakthrough in the design, control and installation of radiant systems. The RMB-1 is a complete injection mixing system, combining a variable speed injection mixing control, injection circulator, system circulator and air elimination all in a single unit. You get unmatched versatility and performance as a result.
* Use as an outdoor reset control, a setpoint control or a delta T limiting control.
* Requires only four pipe connections for complete installation.
* Does not require special piping, balancing valve, closely spaced tees, external control or complex wiring.
* Plug-In, Low Voltage Connections
* Solid Stage Microprocessor
* Replaceable Cartridge Design
* Maintenance-Free, Wet-Rotor Circulators
* Bronze Casing for Open or Closed Systems
• All-in-One Injection Piping, Pumping, Air Elimination, & Control Package
• Only 4 Pipe Connections Required
• Plug-in Low Voltage Connections
• Solid State Microprocessor Design
• Greatly Decreases Installation Time
• Line Cord Included, Hard Wire Option
• Bronze Casing for Open or Closed Systems
• Replaceable Cartridge Design
• Maintenance Free, Wet-Rotor Circulators
• 3 Operation Modes: Outdoor Reset, Setpoint, or Delta T with Limit
• Powered or Unpowered Demand Signal
• 100% Pump Operation / Control Override Switch
• Boiler Control or Enable Setting
• Outdoor and 2 Strap-on Sensors included
Minimum Fluid Temperature: 32ËšF (0ËšC)
Maximum Fluid Temperature: 185°F (85˚C)
Maximum Working Pressure: 125 psi
