Tektronix TDS684A/13/1F/2F 1 ghz digital oscilloscope


Tektronix TDS684A/13/1F/2F 1 GHz Digitizing Oscilloscope
This series was in production by Tektronix: Jan-01-1995 to Nov-01-2000
* Number of Channels: 4 (may be operated simultaneously)
* Simultaneous Maximum Sampling Rate/ch: 5 GSa/s
* One ch. only max. sampling rate: 5 GSa/s
* Max. Record Length: 15000 pt
* Min. Vertical Sensitivity: 1 mV/div
* Maximum Vertical Sensitivity: 10 V/div
* Input Impedance: 1 MOhm, (alternate) 50 Ohm
* Maximum Input Voltage: 400 V rms
* Time measurement accuracy: < 50ps @ 5 GS/s
* Timebase accuracy: +/- 100 ppm
* Trigger Source: External, Internal
* Trigger Modes: Auto, Edge, Normal, Pulse, Single
* Display Type: Color CRT, 7 inch, 17.78 cm
* 13: RS-232 & Centronics Printer Ports
* 2F: Advanced waveform DSP Math
Accessories included: User's Manual, Reference Manual, Technical Reference Manual, Power cord (US type only)

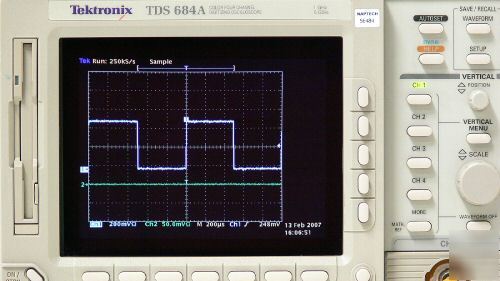

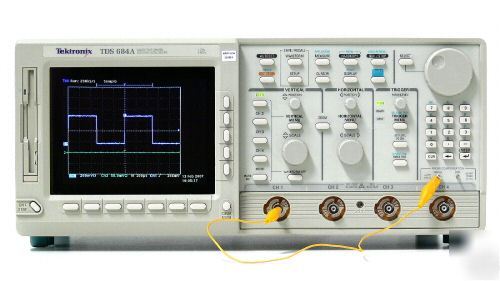

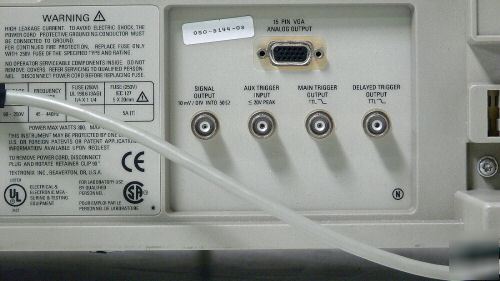

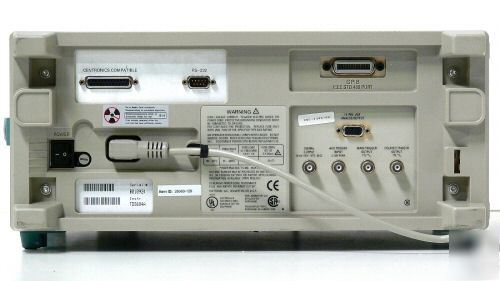

More about the instrument: Serial number: B010924. As you can see in the pictures, it is in good condition with few signs of wear and tear. Photos on this page are of an item similar to the one offered here. It is in the same good condition
Guaranteed to be clean and fully operational, with 14-day right of return
About us: For 15 years Naptech has sold many thousands of pieces of test equipment to thousands of companies including to Government Contractors. We have five full-time engineers to ensure every instrument we supply performs reliably and to full manufacturer's specs. Naptech has a reputation for providing quality equipment at a reasonable price. You can find Naptech on the world-wide web
Thanks for viewing our listing.
