New digital light level meter 200,000 lux photo camera

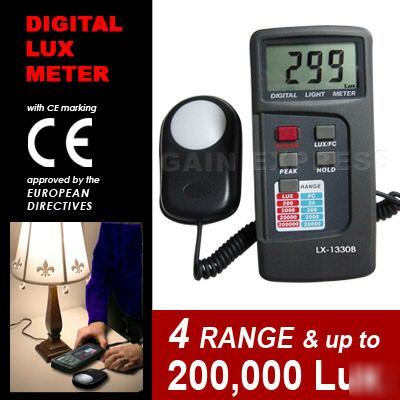

Digital LCD light meter 200,000 LUX with LUX & FC units,
4-RANGE and now with PEAK-HOLD function (LX-1330B)
LX-1330B is extremely precise device with accuracy of ±3% to ±4% rdg through 0-2000,000 Lux readings in four ranges of 200lux, 2,000lux, 200,000lux, and 200,000lux. It provides useful features like DATA HOLD function which freezes or stops all meter's measurement activity and PEAK-HOLD function in which data obtained becomes a very useful information to maintain the brightness of any environment. The features of this digital meter didn't just stop there, it's fully equipped with 2 units, LUX and FC (1FC = 10.76 LUX). It can switch from FC to LUX and vice-versa easily with just a single press.
The light sensitive component uses a long life silicon diode to ensure stability with spectral response filter and fully corrected for the angular incidence of light. It is particularly important for photography taking where brightness or the intensity of light plays a very essential factor, it determines the proper exposure for a photograph. Light meters are also used in the fields of cinematography and scenic design, in order to determine the optimum light level for a scene and in the general field of lighting, where they can help to reduce the amount of waste light used in the home, light pollution outdoors, and plant growing to ensure proper light levels. It can be used to measure luminance in any environments such as illumination control, weather observation and even in multiple work places like factories, offices, shops, schools, restaurants, beauty salons, electro-optical sources, research teaching, metallurgy building, industry inspection, agriculture research. It is valuable to provide the correct light intensity for each environment. Otherwise, energy not only could be wasted but over-illumination can lead to adverse health effects and can decrease worker efficiency.
Our digital meter has CE marking which certifies that it comply with the set essential health standards and safety requirements set out by the European Directives. You are ensure of your safety while using the LX-1330B. Make precise readings right out of the box!!!
* Light-measuring levers ranging from 0.1 to 200,000LUX or 0.01 to 20,000FC repeatedly
* Fully equipped with Data-Hold function that holds freezes or stops all further measurements and Peak-Hold function which collects or record the measured values that can be of use later
* Units and signs display are arranged logically and clearly for ease and comfort of reading results
* Easy switch between Lux measuring units and FC measuring units
* Meter corrected for Luminous Efficiency function
* Correction factor need to be manually calculated for non-standard light sources
* Short rise and fall times
* Has CE marking, conforms with the essential health and safety requirements set out by the European Directives
* Large LCD provides big digits, permits a wide range of light measurements of up to 200,000lux
* Highly accurate with precise and easy readout even in high ambient light and rapid response
* Separate Light sensor allows user take measurements at an optimum position and for convenient testing
* Equipped with LSI-Circuit to provide high reliability and durability
* Low in power consumption which gives you long lasting power with long life silicon photo diode inside
* It includes a FREE protective carrying case with contoured foam inside to absorb the shock impact and helps keep the device in place complete with Atop cover for the sensor to keep the sensitive light sensor away from any unwanted incidents while not in use so you can carry your device anywhere safely and worry-free
* 201 ~ 2,000 LUX: ±3%
* 2,001 ~ 20,000 LUX: ±4%
* 20,001~ 200,000 LUX: ±4%
* Sampling time: 0.2 times / second
* Dimension: 147 x 71 x 41mm (meter body)
* Photo Detector Dimensions: 4 X 2.5 X 1 (inch)
* Photo detector type: Silicon Photo Diode with Filter
* Unit Lux or Footcandle selectable
* Temperature Characteristic: +/- 0.1%C
* Operating temperature: 32-104 degrees F (0-40 degrees C)
* Battery life: 200 hours (estimate)
* Logically arranged Manual
* FREE 9V x 1, 6F22 Battery
* Protective Carrying Case
Click here to view or download the detailed information on how to use, operate and maintain LX-1330B.
