South bend lathe cutter bit tool holder
A reproduction* of South Bend Lathe's cutter bit grinding fixture's tool holders!

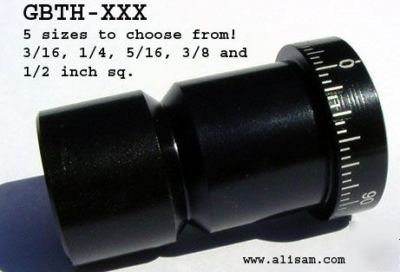

This new tool from Alisam Engineering is a reproduction* of South Bend Lathe Works cutter bit grinding block tool holder! Tool holders come in 5 different sizes, 3/16, 1/4, 5/16, 3/8 and 1/2 inch to fit most quality, ground, square modern tool bits, (using shims the toolholders will accept other square tool bits like 7/16 inch square OR using the 3/16" tool holder and drilling appropriate sized hole you can also adapt them to accept round tool bits also)! (*We have increased the capacity of the tool holders by adding the 1/2 inch square tool bit size which was not available from SBL, in doing so we increased the overall size of the block and the diameter of the tool holders by about .19 inch. Thus our model will NOT interchange with the original without turning down OD*). Made from hard, quality, anodized, "Aicraft" aluminum with very accurate laser engraved indexing marks HERE IN THE USA, employing your neighbors on CNC equipment!

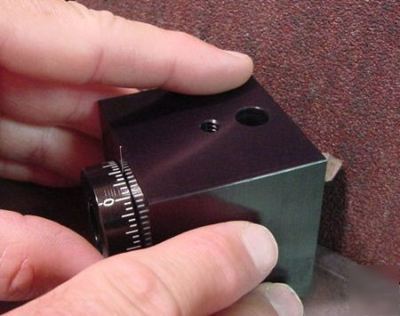

The ease at which a machinist can now grind very accurate compound angles on their square tool bits / cutter bits is without comparison! Place your cutter bit in the appropriate sized tool holder, rotate the center tool holder to achieve the desired side / back / top rake angle, lock set screw and grind on your grinder or belt / disc sander! The block automatically creates a 10 degree clearance angle just like the original, (but may be placed flat to achieve a small degree of front clearance). See pics.!
Please specify the number and sizes of the tool holders you would like upon check out!
Thought I had better get around to letting you know I received the
I hope you sell tons of these. Anyone with a lathe or shaper is very
foolish not to have one of these jigs in their toolbox.
