Anzac am-108 5-300MHZ general purpose amp amplifier
This listing is for an Anzac amplifier.
___________________________________________________________________________________
* Impedance 50 Ohms Nominal
* Maximum Rating RF input +19 dBm
* Frequency Range: 5-300 mHz
* Gain (+25°C)@ 50 MHz: 28.5 ±0.5 dB
* Frequency Response: ±2.5 dB Max.
* Gain Variation with Temperature: ±1.5 dB Max
* Output Power (1 dB Compression): +15 dBm Min.
* 5-300 Mhz: 14 dB Max
* 10-100 Mhz: 9 dB Max
* Input (5-300 MHz): 2.0:1 Max
* Input (10-100 MHz): 1.5:1 Max
* Output (5-300 MHz): 2.5:1 Max
* Output (10-100 MHz: 1.5:1 Max
* Intermodulation Intercept Point (for two-tone output power to + 5 dBm)
* Second Order (5-300 MHz): +28 dBm Min
* Second Order (10-100 MHz):
___________________________________________________________________________________
This is used, but in good condition. Guaranteed to be working.

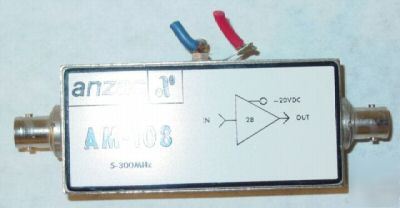

Check out the picture for more information. Feel free to ask any questions. WANT TO REACH ME BY PHONE? Feel free to call me (Trent) toll free @ (***) 972-1346.
