Learn power supply design +5V kit + free parts #4039
Plugin Breadboard Power Supply +5V Kit with FREE Wallwart & FREE Parts Kit #400039
GREAT Revised PRODUCT....GREAT New Low PRICE

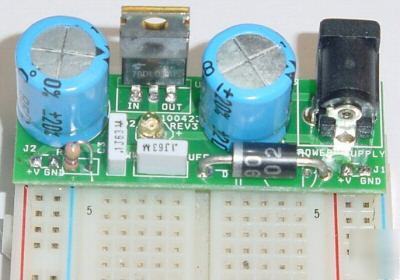

Above shows +5V and +12V inserted into Solderless Breadboard with Wall Wart
GREAT Revised PRODUCT....GREAT New Low PRICE
QTY 1 Kit # 400039 Requires Soldering
This Power Supply Kit has superior regulation because of the quality components.
+5V TO-220 7805 Type Regulator with Low Dropout Voltage
1. Multiple Power Supplies can be used with multiple breadboards. It creates an excellent prototyping environment allowing your heavy duty lab Power Supply to be used on the bigger loads.
4. Uses the 78XX series regulator. The most common regulator out there.
5. Multiple Voltages available 5-6-8-9-12-15-18-24 vdc.
6. A fuse can be added to create an independently fused Power Supply for custom applications.
7. A blocking diode has been added to protect the input from reverse polarity at hookup.
8. LED designate Output Voltage ON.
9. Allows you to utilize some of those wall wart Power Supplies that you have laying around. There is always an overabundance of these.
Give them a new life by recycling them into your new test fixturing.
10. Provide an in depth understanding of Power Supply design.
11. Easy to assemble and solder.
12. Easy connect/disconnect to a wall wart with a 2.1mm coaxial socket.
13. Easy connect/disconnect to a breadboard. It plugs into the breadboard power distribution strips.
15. Easy to follow, step by step assembly instructions.
16. Detailed linear Power Supply operations tutorial.
19. Detailed MC78XX spec sheet
Free Pull up network resistors and bypass caps
* Qty 1 FREE Wallwart #100369
* Qty 1 FREE Parts Kit #400049
* Qty 1 +5V Power Supply Plugin Kit #400039 (see below)
FREE Parts Kit #400049 includes
Qty 2 #100350 Resistor SIP 8 Pin Bussed 4.7K .1SP 1 common (7 resistors in one)
Qty 6 #100040 .1uF CAP 63V 5% TH bypass square .2sp .1J63M Quality metal polyester Film
Qty 2 #100256 PCB Connector 1x6 MTA .156SP Male AMP
Qty 4 #100093 Pushbutton Switch with Button DPDT snap on snap off
FREE Parts Kit #400049 - pictured below
The Power Supply Board plugs into both sides of the breadboard power strips with 2 .1 spacing headers.
Requires Soldering Solders in minutes ! Breadboard sold seperately ( NOT included )
GREAT Revised PRODUCT....GREAT New Low PRICE
Check out the Breadboard Section in our store - DAQ stuff store
