New lambda hp ess 80-185-2-1417 special dc power supply

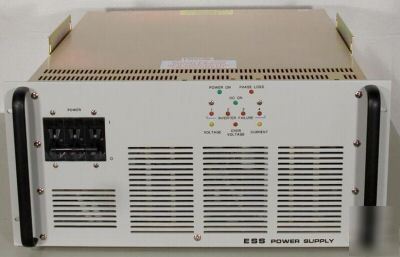

NEW Lambda EMI HP ESS 8-185-2-1417 Special DC Power Supply made for Applied Materials, Part Number: 00481528
Comes with a manual and what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from Lambda and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
The unit is believed to be brand new, surplus spares stock from Intel. It is guaranteed to work.
List Price is: $8,815.00 (6-8 week delivery time for a basic ESS 80-185-2 Power Supply, not the custom version)
The Unit's Serial Number Tag Reads:
Model Number: ESS 80-185-2-1417
This Unit Has the Following Special Options:
* Painted Front Panel Gray (AMAT Gray)
* Removed everything from the front panel except the contactor switch and LEDs
* Standard input terminal on rear to be replaced with Harting Elektronik connector type HAN K 4/2 PN: 09380062601 (Mate is not required, amid to fit in house). E/M# 72-169-001.
* Negative output terminal inside the power supply is to be connected to the chassis ground
* Special metric mounting screws required for special connector
* Main connector Han K 4/2 Phase A Pin 1, Phase B Pin 2, Phase C Pin 3, Earth Pin 4
* Fain failure detect option (unit requires special DC fan with temp. control)
* Special linearity test procedure, 07-481-055
* Special low leakage diodes, voltage and current channels on A100 PCB
* Output selectable 80 to 185 or 80-50 VIA Digital Input
* Load Regulation 0.025% for 20% load resistance change
* Temperature coefficient 0.02% per °C for both ranges
The ESS is a high power Constant Voltage, Constant Current Programmable DC power supply. Since its introduction in 1995, the ESS has evolved into one of the most reliable, compact, high performance power supplies available. It features a pulse-by-pulse current limit which provides excellent performance in demanding high current applications such as RF Amplifiers, DC Motors and Magnetic Coils. The many standard features make it an excellent choice for both OEM and laboratory applications.
This very high density supply provides 10 kW or 15 kW in a 5U (8.75") high rack-mount package. Outputs are available to 600 V (500 V, 15 kW) and 1400 amps.
Input Power Requirements: 190 - 253 VAC, 47 - 63 Hz, 3 Phase, 60 Amp
For More Pictures Please Click the Following:
* Picture 3 - Front Panel Indicators
* Picture 4 - DC Output Connections
* Picture 5 - Programming Interface
* Picture 6 - AC Input Connector
* Picture 7 - Serial Number Tag
