Pall microelectronics gaskleen 6101 ser filter assembly
Quantity 2 Pall Microelectronics Gaskleen 6101 Series Filter Assembly GLFPF6101VM4 (040207702040)
This does not mean that the unit doesn’t work, only that we have not tested or checked it out.
This may also mean that we are not knowledgeable in that specific item.
Please call MONIQUE Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions
between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time.
The Item may vary from picture as manufacture may change model appearance.
All information, including description, specifications and features are from a manufacturers
data sheet or manual and are subject to change without notice.
Meaning that all information included in the description, specifications and features
What you see is what you get! If it doesn’t show it you probably won’t get it!
MHZ ELECTRONICS INC. - CALL MONIQUE - 1-866-MHZ-ELEC MHZ ELECTRONICS INC. - CALL MONIQUE - 1-866-MHZ-ELEC MHZ ELECTRONICS INC. - CALL MONIQUE - 1-866-MHZ-ELEC MHZ ELECTRONICS INC. - CALL MONIQUE - 1-866-MHZ-ELEC - MHZ ELECTRONICS INC. - CALL MONIQUE - 1-866-MHZ-ELEC MHZ ELECTRONICS INC. - CALL MONIQUE - 1-866-MHZ-ELEC MHZ ELECTRONICS INC. - CALL MONIQUE - 1-866-MHZ-ELEC MHZ ELECTRONICS INC. - CALL MONIQUE - 1-866-MHZ-ELEC

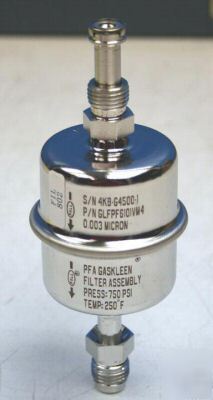

Pall Microelectronics Gaskleen 6101 Series Filter Assembly GLFPF6101VM4
* Temperature: 250° Fahrenheit
* Retail Price: $541.61 each ( $1,083.22 total )
* 316L stainless steel electropolished housing
* Available in both standard and shortened version
* Wide variety of fitting options available
* Compact size (2.2"/56mm dia.) for ease of installation
* The Gaskleen® 6101 Series Filter Assembly is designed for 3 nanometer (0.003 µm) filtration of process gases.
* Electropolished 316L stainless steel housing
* 25 µin / 0.64 µm Ra internal surface finish
* Emflon Element: 100% integrity tested
* Core and End Caps: Polypropylene
* O-ring: Teflon encapsulated Viton
Connections Available from Manufacturer):
* 1/4" Gasket Seal, Male (VCR2 or compatible)
* 1/4" Compression Seal (Swagelok2 or compatible)
* 3/8" Gasket Seal, Male (VCR or compatible)
* 3/8" Compression Seal (Swagelok or compatible)
* Maximum Operating Pressure: 750 psig @ 176°F/52 bar @ 80°C
* Maximum Forward Differential Pressure: 100 psid @ 70°F/7 bar @ 21°C
* Maximum Reverse Differential Pressure: 50 psid @ 70°F/3.4 bar @ 21°C
* 100% helium leak tested to10-7 atm•cm3/s
* Design validated to 10-9 atm•cm3/s
