Rohde & schwarz nrvd dual power meter w/ option 01

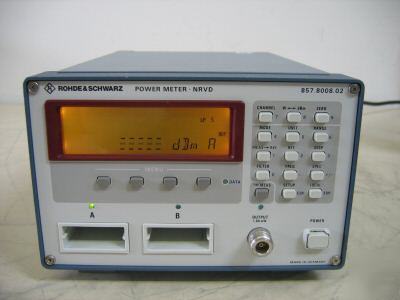

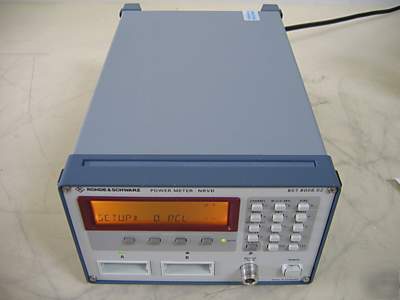

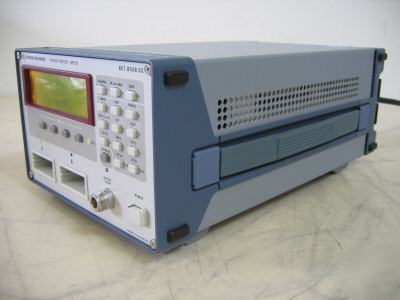

Rohde & Schwarz NRVD Power Meter, Dual
* Description: The R&S NRVD Dual Channel Power Meter offers two independent channels for simultaneous measurements and each channel can exchange information with one another. The NRVD is designed as two separate power meter instruments in one housing. The two channels can be separately set so that two completely different measurements can be carried out at the same time. The two measured values can also be related to each other for direct indication of reflection coefficient, SWR and return loss, for instance, when an SWR bridge is connected to the meter. The NRVD was designed for use in Laboratory, Production and R&D environments. And with a range of probes and sensor which include thermocouple power sensors, as well as highly sensitive diode power sensors, probes, and insertion units, the R&S NRVD covers a frequency range of DC to 40 GHz and a power span from 400 pW up to the kW range. A test generator is included to check measuring heads and sensors fro proper functioning. It generates a low-distortion, highly accurate 50 MHz signal of 1 mW power (0 dBm). Features and specifications include:
* DC to 40 GHz Frequency Range
* Two Independent Channels for Simultaneous Measurement
* Unmodulated and Modulated Power (average power, AM, pulse power), Reflection and DC Voltage measurements
* Intelligent Measuring Heads - Just plug in and start measuring
* Entry of Reference Values for Level and Attenuation

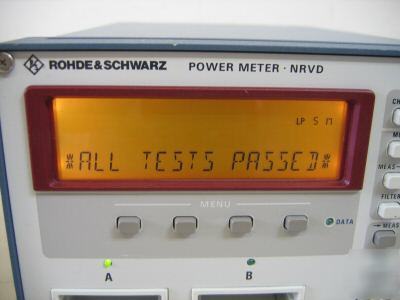

* Built-in Test Generator for Checking Sensors

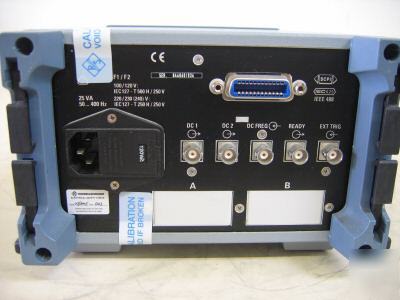

* Remote Control of all Functions via IEC/IEEE Bus
* Cosmetic Condition: Very Good
* Working Condition: Presumed Good but Untested

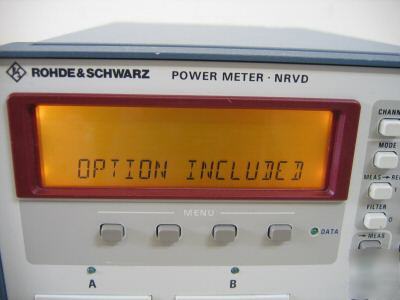

* Other Comments / Notes: This R&S NRVD has the following option:
* 01: I/O Option (provides a number of inputs and outputs to extend the range of the NRVD)
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent.
