English wheel 3X9 upper side mount assembly
CNC Precision Machined English Wheels
"If Your Going To Do It, Do It Right!"
This Means that if the Item is; Delayed, Lost, Damaged or Whatever We Are Not Responsible.
Who are We? Can you Trust Our Quality? Want Answers?
Go to which is the Worlds Largest Metal Shaping Community. This site is Full of Guys and Gals doing Everything you could imagine when it comes to Body Repair, Scratch Built Cars and Bikes, Airplane Repair, Artist, Fabricators, and Guys and Gals just tinkering around. Metal Meet has an International Meet once a Year in centrally located Oblong IL, and Many of it's Members host Smaller Regional Events to further Share the Metal Shaping knowledge. My user name on Metal Meet is Joe Andrews, the Company Hoosier Pattern either name can be searched on Metal Meets Site.
This Upper Wheel and Mount is designed after the Older Style Edwards Machines. Having this Style Upper Wheel has a Limitation, and Some Benefits over Yoke Style Mounted Upper Wheels. The Limitation is you can Not Orient the Upper 360 degrees like Our Other Machines. On the Benefit side this Set Up Offers you the Operator the Ability to Grab the Upper Wheel on Top and Rotate it Back and Forth. When doing Smaller pieces like Cab Corners, Headlight Buckets, and other High Crowns it's Awesome to Steer withe Panel with one hand and drive the Wheel with the Other.

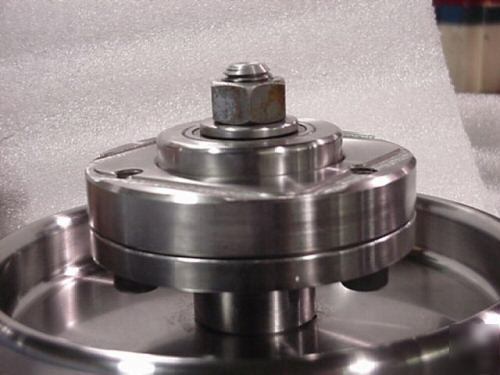

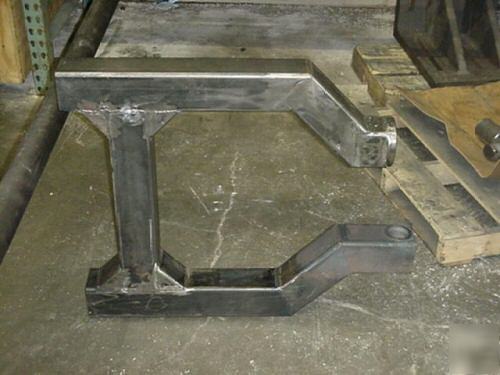

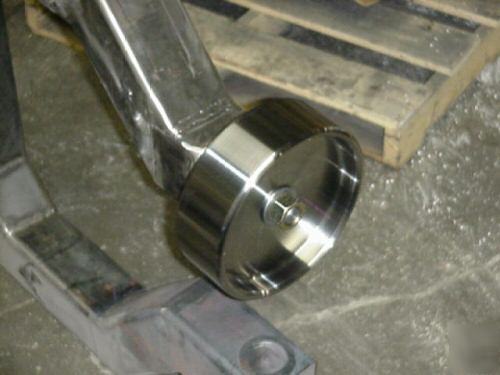

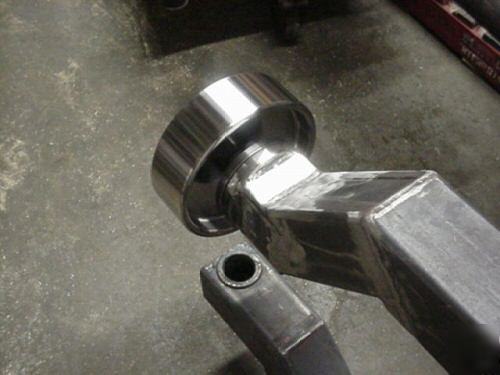

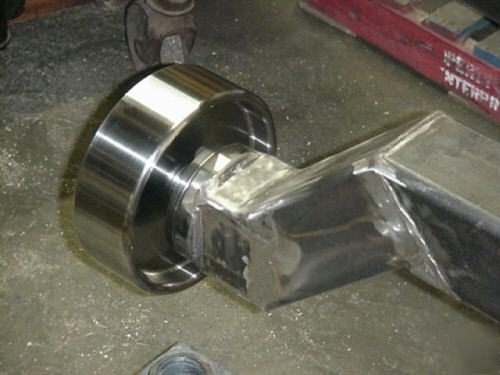

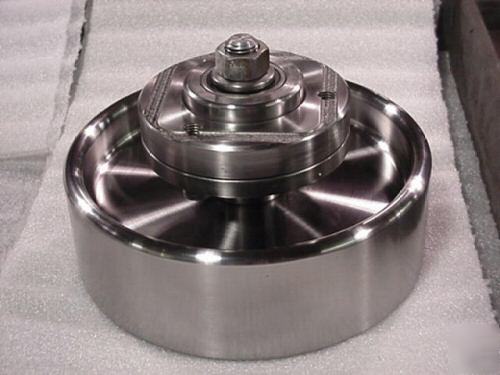

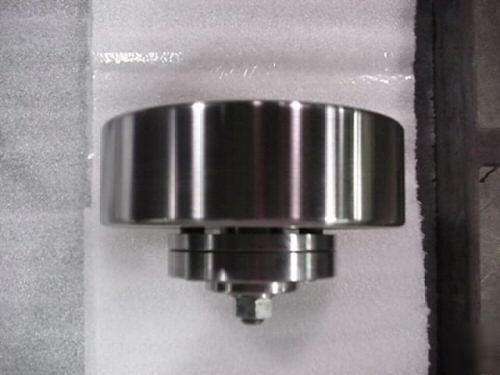

I listed a Lot of Pictures to Show the Components, Basically there is a Shaft, A Shaft Housing, Two Bearings, a Couple of Nuts to secure the Shaft, a Mount that's welded to Your Frame, and three Socket Head Cap Screws to Bolt the Wheel on. All of these pieces are Shown clearly in the Pictures. Also shown is the Wheel Mounted on a Frame to show.
Machined from 4140 Alloy Tool Steel Heat Treated and Drawn to 54 Hrc.

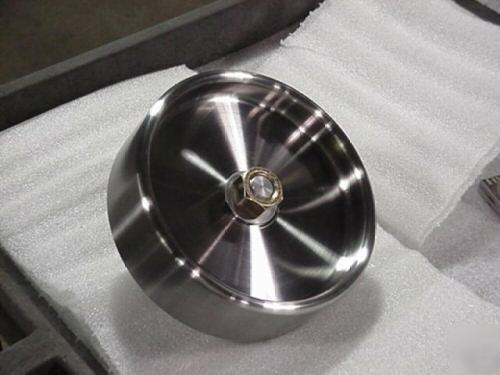

3 Inches wide and 9 Inches Round

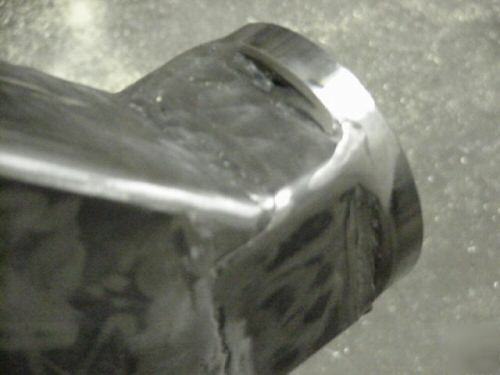

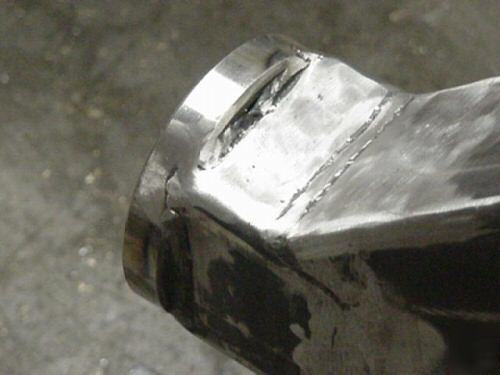

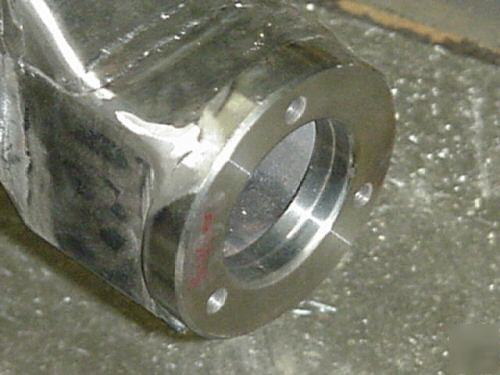

Mount shown is Included(made from H13 Tool Steel)
Shaft is Included(made from H13 Tool Steel)
Bearing Housing(made from H13 Tool Steel)
© Copyright 1999 - 2008, All Rights Reserved
If you have questions regarding anything to do with this Tooling please don’t hesitate to ask, e-mail ****@hoosierpattern.com
