Tektronix csa 803C communication analyzer w/head CSA803

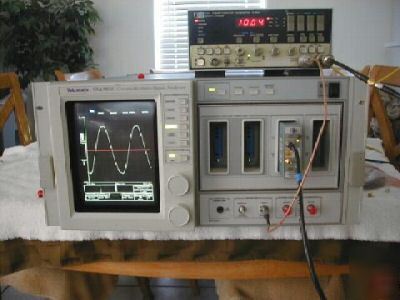

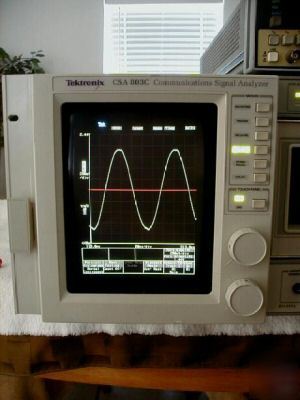

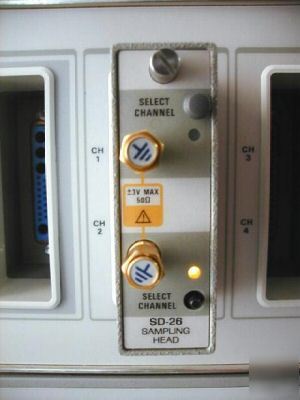

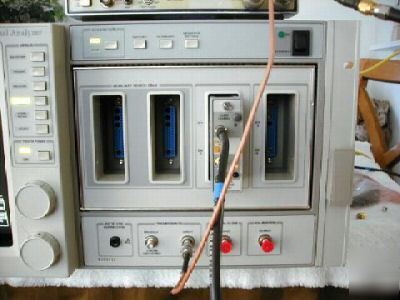

CSA803C Communications Signal Analyzer features nine new communications masks and a new trigger and prescaler trigger. The CSA803C also offers a 50 GHz bandwidth, four channels, triggering to 12.5 GHz, a 10 femtosecond sampling interval. Vertical Systems: *** Rise Time/Bandwidth - Determined by the sampling head used. *** Vertical Resolution - 8-bits full screen (78 µV LSB at 2mV/div deflection factor). *** Amplifier Gain Accuracy - ±1% of all settings. *** Deflection Factors - 2 to 255 mV/div in 1 mV/div increments. *** Offset Range - ±2 V. Horizontal System: *** Main and Window Time Base - 1 ps/div to 5 ms/div, settable in 1-2-5 sequence or in 1 ps increments. Time Interval Accuracy - *** 8 ps + 0.01% x (interval) + 0.001% x (position), guaranteed; *** 4 ps + 0.004% x (interval) + 0.0004% x (position), typical, where interval >1 ns; *** 2.5 ps + 0.0004% x (position), typical, where interval = 100 ps; *** 1 ps + 0.0004% x (position), typical, where intervals <10 ps. The Tektronix SD-26 is a dual channel, 20 GHz sampling head. This sampling head has the same acquisition capability as the SD24 TDR/Sampling Head but does not include the TDR step generators. Acquisition rise time of 17.5ps. It has + or - 3V max, 50 Ohms inputs. Used with TEK 1180XX digital sampling oscilloscopes and TEK. CSA 803A analyzers.
Reasonable offers are always well come. REASONABLE ONES!
