1991 shigiya gas-3050ND angle head cnc grinder

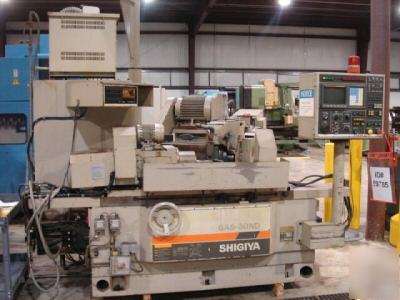

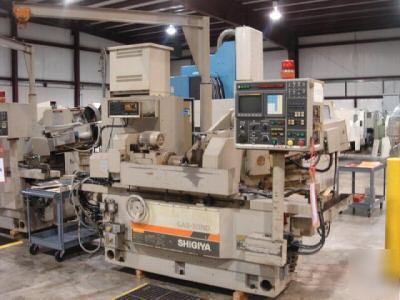

1991 Shigiya GAS-3050ND Angle Head CNC Grinder
(SN# 231904) Inventory ID: 59785
Standard Wheel Dimensions 24" x 3" x 10"
Manual Feed Moving Distance (In 30 Deg) 6.3"
Rapid Feed Moving Distance (In 30 Deg) 2.7"
Max Automatic Grinding Travel 0.03"
Plunge Cut Spark Out Range 30 Sec
*Motor Driven With 7.5KW(10HP), 3 Phase, 60 Cycle, AC Spindle Motor. MD Hydraulics, MD Coolant.
*Rotary Type Diamond Wheel Dresser
*Pulcon U2000A Flexable Electronic Micrometer
*Inprocess O.D. Gauge. Flagging.
*Sub-Loading Attachment.Coarse and
*Fine Wheel Infeed Rate Selector Knobs.
*Auto and Fine Wheel Infeed Index Dials.
Machine 126"x 100"x 111" Weight 9950lbs
Location: On BlueStar's Showroom Floor in Johnsburg,IL
