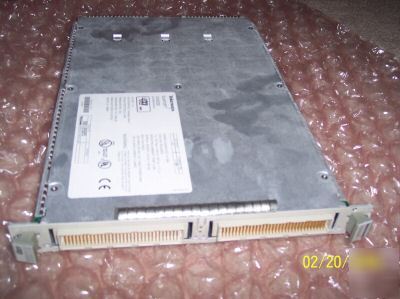

Tektronix VX4330 120-channel relay multiplexer module
Tektronix VX4330 120-Channel Relay Multiplexer Module
ITEM IS TESTED AND IN EXCELLENT WORKING AND PHYSICAL CONDITION
EXTIMATED USED VALUE $2,200.00
* 2 A Maximum Switching Current Per Contact
* 220 VDC, 250 VAC Maximum Switching Voltage Per Contact
* 60 W, 125 VA Maximum Switching Power Per Contact
The Tektronix VX4330 120-Channel Relay Multiplexer Module is a printed circuit board assembly for use in a mainframe conforming to the VXIbus Specification. The VX4330 provides six 1 × 10 4-wire multiplexer (mux) sections. Each of these six sections can be independently configured under software control as two 1 × 10 2-wire muxes, a 1 × 20 2-wire mux, or as a 1 × 40 1-wire mux. In addition, each section can be programmed to connect it to the section above or below it to produce up to a 1 × 60 4-wire mux, a 1 × 120 2-wire mux, or a 1 × 240 1-wire mux.
