5CSM kearney & trecker plain horizontal mill 10764

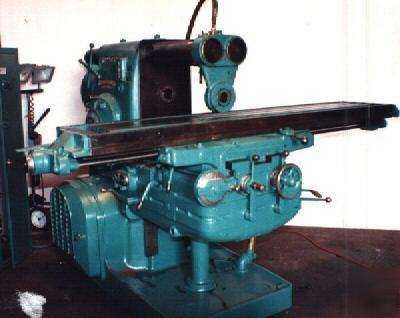

5CSM KEARNEY & TRECKER PLAIN HORIZONTAL MILL
New 1950, Serial No. 3-6214, Size 5, Model CSM
Table Working Surface, L x W............ 94" x 18"
Longitudinal Table Travel............... 52"
Cross Saddle Travel..................... 16"
Vertical Knee Travel.................... 20"
Spindle Taper........................... #50 NSTD
(32) Spindle Speeds, Range.............. 30 to 1500 RPM
(32) Longitudinal and Cross Feeds....... 3/8 to 90 IPM
(32) Vertical Feeds, Range.............. 3/16 to 45 IPM
Spindle Center to Table Top, Maximum.... 20"
Spindle Center to Table Top, Minimum.... 0"
Power Rapid Traverse.................... 150 IPM
Spindle Motor, Horsepower............... 50/25 HP
Spindle Motor, RPM...................... 1760/880 RPM
Feed Motor, Horsepower/RPM.............. 5 HP/1725 RPM
Electrical System....................... 550/3/60
Overall Dimensions...................... 8' x 9' x 6'
Weight, Approximately................... 13,500 LBS
PRICE: F.O.B. OHIO (Toledo)............ $1,950.00
All machines/equipment subject to prior sale.
