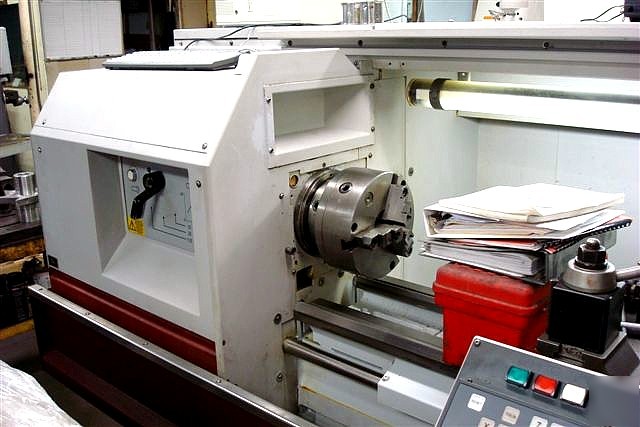

15" CNC LATHE, Harrison ALPHA 400 Fanuc Alpha
15" CNC LATHE, Harrison ALPHA 400 Fanuc Alpha
15" x 50" HARRISON CNC/MANUAL FLAT BED LATHE
MODEL: ALPHA 400S, S/N: , NEW: 2000
SWING OVER BED ........................ 15-3/4"
SWING IN REMOVEABLE GAP ............... 23"
GAP WIDTH FROM FACE PLATE ............. 6-1/2"
SWING OVER CROSS SLIDE ................ 9-5/8"
HOLE THRU SPINDLE ..................... 2-1/8"
DISTANCE BETWEEN CENTERS .............. 50"
SPINDLE NOSE CAMLOCK .................. D1-6"
SPINDLE SPEEDS INFINITLY VARIABLE THREE RANGES:
LOW RANGE ....................... 15 - 300 RPM
MEDIUM RANGE .................... 35 - 830 RPM
HIGH RANGE ...................... 110 - 2,500 RPM
BED WIDTH ............................. 12-1/2"
TAILSTOCK DIAMETER .................... 2-1/2"
TAILSTOCK QUILL TAPER ................. #5MT
TAILSTOCK QUILL TRAVEL MANUAL ......... 5-3/4"
APPROXIMATE DIMENSIONS ................ 101"L x 60"W x 68"H
APPROXIMATE WEIGHT .................... 4,750 LBS.
FANUC-ALPHA-T COMPUTER NUMERICAL CONTROL
TEACHING & PLAYBACK MODE, CONSTANT SURFACE SPEED,
INFINITE THREADING RANGE, HANDWHEELS FOR MANUAL OPERATION
ALORIS QUICK CHANGE TOOLPOST WITH THREE HOLDERS
AC SERVO MOTORS & BALLSCREWS FOR LONGITUDINAL & CROSS CARRIAGE TRAVELS
10 HORSE POWER AC SPINDLE MOTOR
COOLANT SYSTEM w/ REMOVEABLE CHIP PAN
Machine Location: HARRISON, NJ
