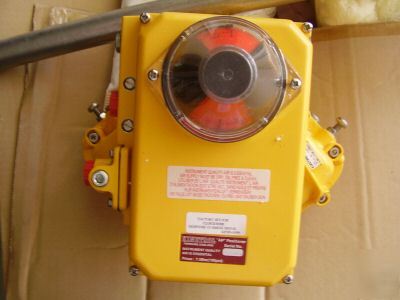

New kinetrol ap valve positioner 099-500AP000C
The AP Positioner moves an actuator to a position
set by a 3 - 15 psi control signal and holds it there.
1) Fast, smooth, accurate response
2) Simple, all-mechanical function for unbeatable reliability
3) Three flow options to optimise control on all actuator sizes
The unit can be mounted in any orientation on to any quarter turn or linear application

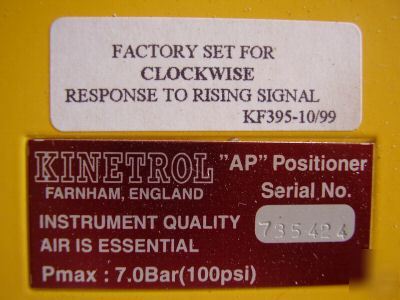

Quick calibration and reversal of rotational sense (clockwise/anticlockwise) without special tools or parts change
6)Integral options - easily retrofitted modules include:
• two wire 4 - 20mA angle retransmit (inside the same case)
• mechanical or inductive limit switches (general or hazardous areas)
• 4 - 20mA I/P convertors (general or hazardous areas)
• Clear Cone visual position indicator
• DIN plug for external retransmit connection
• low (-40°C) and high (100°C) temperature adaptations available
• fail hold options available
• Built in air ports for supply, gauge and actuator connections
• Choice of mount options - see opposite page
7)Weatherproof, compact and robust metal housing
8)Vibration and shock resistant to 4G
9)Built in gauge ports / external connections
valve to its held position. The input signal and desired position is determined by the cam profile. A cam giving 0 - 90°output movement linearly proportional to a 3 - 15 psi (0.2 -1.0 bar) signal is standard, and almost any desired characteristic can be supplied to order; if it cannot be found in the list of existing options contact Kinetrol.
The AP positioner can be directly mounted on special versions of Kinetrol model 05, 07, 09, 10, 12 and 14 actuators, both double acting and spring return, giving an assembly with no external plumbing, wiring or mechanical connections and the best in direct backlash free control. Mount kits are available for models 16, 18
and 20. Alternatively, discrete versions mount on any actuator using VDI/VDE 3845 NAMUR drive, or Kinetrol male square with mounting brackets. Neat adaptations for linear cylinders are also available - consult Kinetrol for details.
* Air Supply: instrument quality (dry, clean, oil free) 3.5 to 7.0 bar, 50 psi to 100 psi standard. Consult Kinetrol for low pressure application
* Signal: 3-15 psi (0.2-1.0 bar) standard. Consult Kinetrol for split range, 6-30 psi etc.
* Control Response: 0-90° linear output standard.
* Consult Kinetrol for other characteristic cam options
* Sensitivity better than 0.7% of span
* Hysteresis better than 0.7% of span
* Deviation from linearity less than 1% of span
* Flowrates AP: 3.3 scfm ( 93 nl/min) @5.5 bar
* MP:10.0 scfm ( 283 nl/min) @5.5 bar
* HP:27.0 scfm (764 nl/min) @5.5 bar
Operating temperature range: -20° to 80°C standard, -20° to 100°C Viton, -50° to 50°C silicone
* Output torque same as double acting or spring return actuator. When controlling fast movement of inertia loads, consult Kinetrol
* Vibration tolerance 4G, 100 Hz
* I/P convertor Non-hazardous options CENELEC EEx d IIC T6
