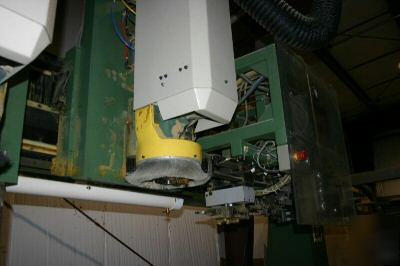

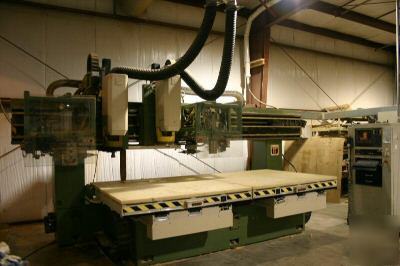

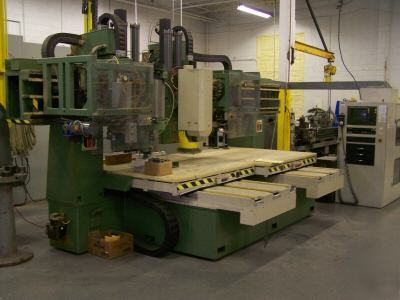

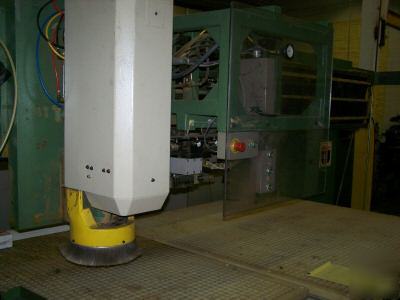

Wadkin cnc router, dual 64" vac tables, dual 20K heads
good used 1991 wadkin cnc router
wadkin olympus 401 3216 twin table 5 axis router
a/c brushless servo high performance drives
2) tool changers, 10 tools each.
independant control of tables for pendulum machining or lock them together for one large table
universal matrix vacuum tables with independant control

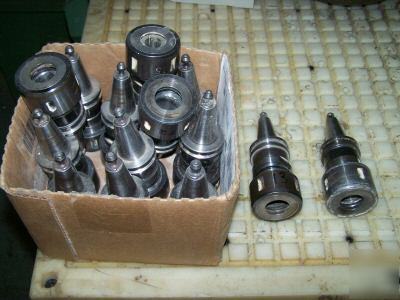

iso 30 tg100 collet holders included
154" X x 63" Y x 14" Z travels
head centers adjustable from 27.5" to 65.5"
590 ipm X & Y Z & W 314 ipm; rapids 787 ipm & 394 ipm
approximate weight 27,000 lbs.
this machine occupies 27' x 11' of floor space.
this machine is built stronger than anything on the market today, save thouusands on a great machine. i have purchased a larger 5 axis router and no longer need this machine. note: no vacuum pump is included.
