Microchip pic chip ic programmer copier duplicator

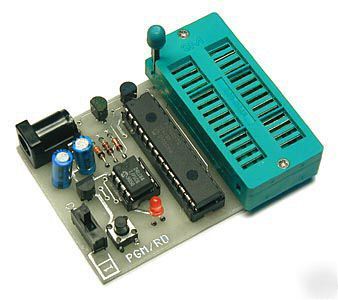

MICROCHIP PIC COPIER DUPLICATOR
DUPLI-PIC16C55x/57x is a low-cost hand-held device intended to copy the contents of the master PIC16C55x/57x chip to any number of target chips. It can be quite useful for small to medium volume programming. The Copier has the following features:
* Direct support for all Microchip's 18-pin PIC16C55x/57x devices
* Includes a ZIF socket for DIP packages
* Read Master and Program functions
* Reading and programming the complete contents of the chip including Program memory, configuration bits (fuses), ID word
* Code protection state of the programmed chip can be chosen by the dedicated switch
* Manufacturer approved programming algorithm
* Operates as a standalone unit (internal non-volatile buffer: 8K x 8)
* Very simple operation control using just one button
* Clear indication of the device status by the LED
* Safe chip insertion/removal by switching all device pins (including Vdd and Vpp) to ground when idle
* Operates from external power supply: 15V / 100mA (not included)
The following devices are supported by the Copier:
PIC16C55, PIC16C55?, PIC16C57, PIC16C57C, PIC16CR57A, PIC16CR57C.
