> Hyundai hit-400G gang fanuc 21T 2AXIS cnc lathe (4217)
Hyundai hit-400G gang fanuc 21T 2AXIS cnc lathe (4217)

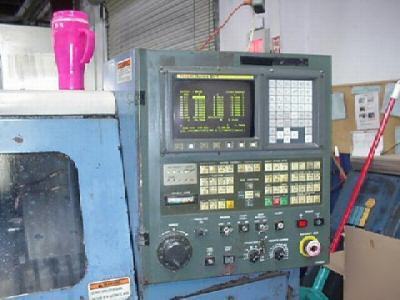

HYUNDAI HIT-400G GANG TYPE 2-AXIS CNC TURNING CENTER Year 1999 s/n 12009025 Specifications... Max. Swing over bed 19.29" ... Max. Part diameter 6.5"... Max. Part length 6.5" ... Standard chuck size 5"... Cross travel (X-Axis) 15.74" ... Longitudinal travel (Z-Axis) 9.84"... Rapid traverse rate (X-Axis) 1,181 IPM ... Rapid traverse rate (Y-Axis) 1,417 IPM... Type of tool support Gang ... Bar capacity 1.54"... Spindle speed range (1 RPM Increments) 60-6000 RPM... Spindle horsepower 10 HP ... Dimensions 78" x 52" Approx. machine height 65"..... Equipped With... Fanuc 21-T CNC controls... Gang type platten with tool holders... Collet chuck... Chip conveyor ... Splash guards
