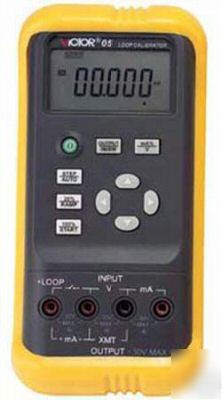

Process calibrator VC05


2) Output and measure DC V: 20mA
3) Loop current measure DC V: 28V
4) Can simulate the output of analogue transducer
5) Can supply 24V loop current
6) Can test the switch mode, take operation from zero to full scale
7) Can produce fast and slow auto inclined wave of 4
10) Auto power-off setting functions
● Power supply: 9V battery(ANSI/NEDA 1604A or IEC 6LR619V alkaline)
● Battery life: about 20 hours under the condition of 10mA
● Max. permitted voltage: 30V(between any two terminals or between any terminal and earth ground)
●Operating temperature : 0? to 50?
● Operating relative humidity: ?80% RH
● Storage temperature : ?-10? to 55?
● Relative humidity for storage: ?90% RH
● Size: 200×100×40mm(with holster)
● Accessories: operation instruction, a set of CF-36 industrial test lead ( with alligator clips attached to probes)
● Option: AC power-supply adapter(VCPS), industrial test lead(CF-31-A with probe clips)
● Safety: certified as compliant to IEC1010 provisions(Safety standard issued
by International Electro technical Commission)
Output Function & Specification (applicable to temperature range from 18 to 28 ? ,within one year after calibration).
Input Performance Capabilities(applicable to temperature range
form 18? to 28,within one year after calibration)
All our Calibrators are provided one year warrantee by us from the date you make a purchase. An replacement or repairment will be provided by us for free when a faulty is developed within the warrantee.
