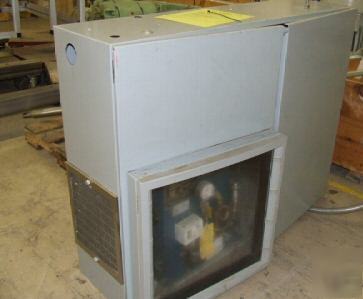

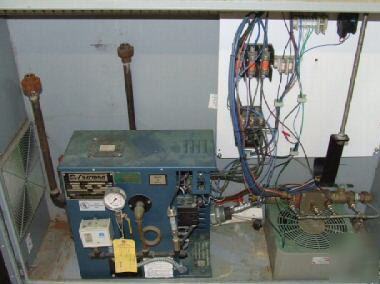

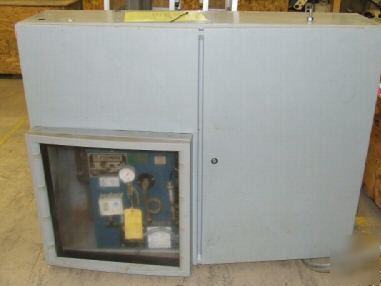

Sussman mba electric generator / boiler
Small size, small capacity Sussman MBA Electric Steam Generators are perfect for applications requiring efficient, high quality steam in laboratories, hospitals, pilot plants and for small, intermittent, low-steam consuming loads.
These generators can be used for standby operations in off-seasons or when a larger boiler is shut down or unavailable. The automatic electronic liquid level controller meets all UL and ASME requirements. A main waterline pressure 10 psig greater than the operating pressure of the steam generator is required for automatic water feeding.
All MBA steam generators are factory tested and are ready to operate.
* Safe easy-to-use heat source - no on-site products of combustion.
* Easy and quick to install, they require only a water feed connection and electrical hook-up.
* Steam available at the flip of a switch.
* Applications include: Laboratory use, steam for small tanks, reactions and distillations, autoclaves, food products, jacketed vessels for processing waxes, paraffins, glues, resins and varnishes and woodbending.
* Built in accordance with Section I Code M of ASME Boiler and Pressure Vessel Codes, to 100PSIG trim.
* UL Listed and CSA Certified.
* LIQUID LEVEL / LOW WATER CONTROL
The electronic control automatically maintains proper water level, and shuts off the generator when water supply in the boiler drops below a safe operating level.
Allows constant observation of water level while boiler is in operation
Complete with pilot light, for switching the generator on and off.
* INTEGRAL ELECTRICAL CONTROL
Magnetic contactor energizes the element and is integrally mounted in the control unit.
Facilitates emptying the pressure vessel during blowdown/ drain sequence.
Provides easy control of steam.
* LONG LIFE HEATING ELEMENTS
Industrial grade, heavy duty stainless steel heating elements equipped with one piece resistance welded terminations for added strength and safety.
* OPERATING PRESSURE CONTROL
Operates automatically to maintain steam pressure within generator.
* MANUAL RESET PRESSURE CONTROL
Provides high limit pressure cut-out with manual reset.
ASME Code valve, automatically opens to reduce pressure should excessive steam cause pressure build-up.
Allows visual observation of steam pressure over full range.
* ENERGY SAVING AND MINIMUM MAINTENANCE
Fully insulated pressure vessel minimizes heat loss and maximizes energy savings.
All controls and components are easily accessible. Fully-louvered openings avoid component heat build-up.
Performance is insured for all typical industrial applications.
* Pressure vessel rated at 100 psig to ASME Section I, Code M and National Board registered.
* UL listed, CSA certified, built to NEC.
* Units are trimmed at 100PSIG as standard. Lower trims are available.
* Incoming water line pressure must be 10 PSIG greater than generator operating pressure. If not, a motor/pump must be used. Specify Sussman 38002A high pressure feedwater motor/pump system.
* When ordering: Specify Model No., KW, volts/ph and motor/pump, if required.
* Water Connection is 1/4 NPT. Steam outlet is 1/2 NPT.
