Hewlett packard hp 400E ac voltmeter

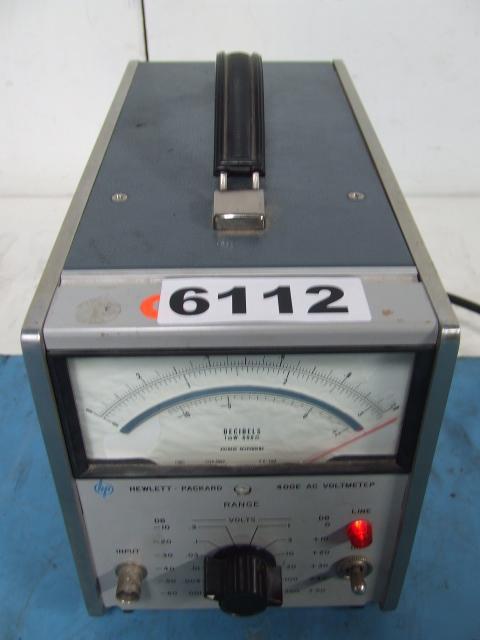

Hewlett Packard HP 400E AC Voltmeter
Solid state AC voltmeter. Great for measuring output levels on preamps, power output levels on amps, Frequency response, crossovers, etc. Has mirrored scale meter with linear and dB scale calibrations for highly accurate measurments.
Range: 1.0 mV to 300 V Full Scale, -60 dB to +52 dB in 12 ranges (1,3,10 Sequence)
Accuracy: 40 Hz to 2 MHz +/- 1% of Full Scale Calibration: Reads RMS value of sine wave; (based on 0dB=1MW in 600 ohms) 10 dB intervals between ranges.
Input Impedance: 10 Megohms shunted by less than on all ranges.
Maximum Input: 500 Vrms, 300 Vdc
Power: 115 or 230 VAC +/- 10% 48 to 440 Hz6 VA max
